Display with Pushed "DEST" Switch

• Easy Mode

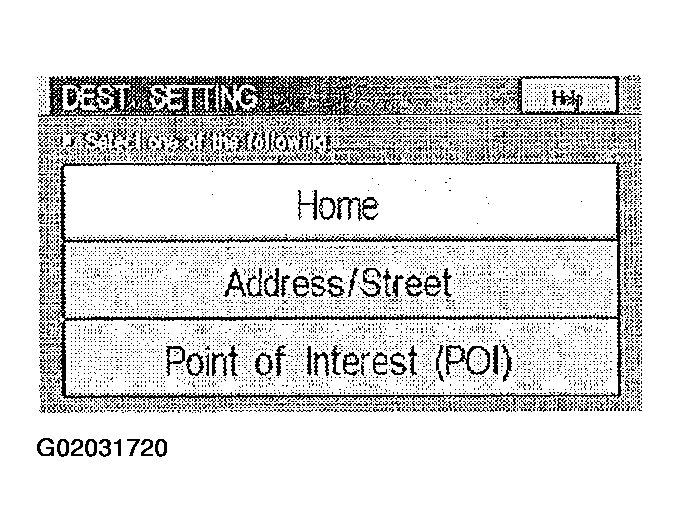

  Fig 1: DEST Switch Display - Easy Mode

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Expert Mode

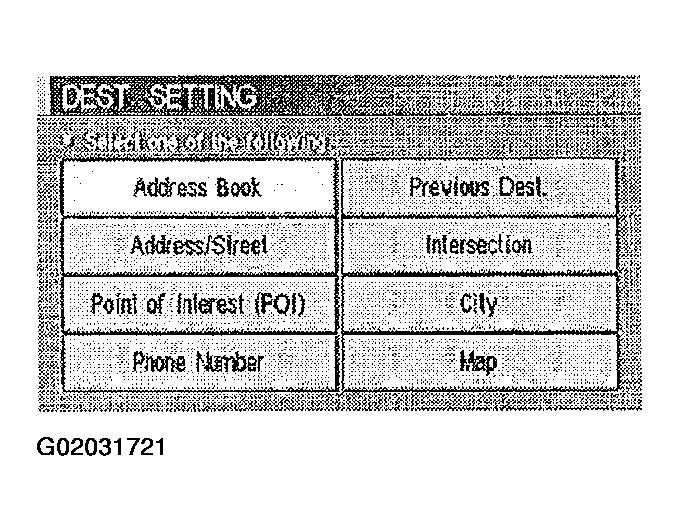

  Fig 2: DEST Switch Display - Expert Mode

  Courtesy of NISSAN MOTOR CO., U.S.A.

The function of each icon is as follows:

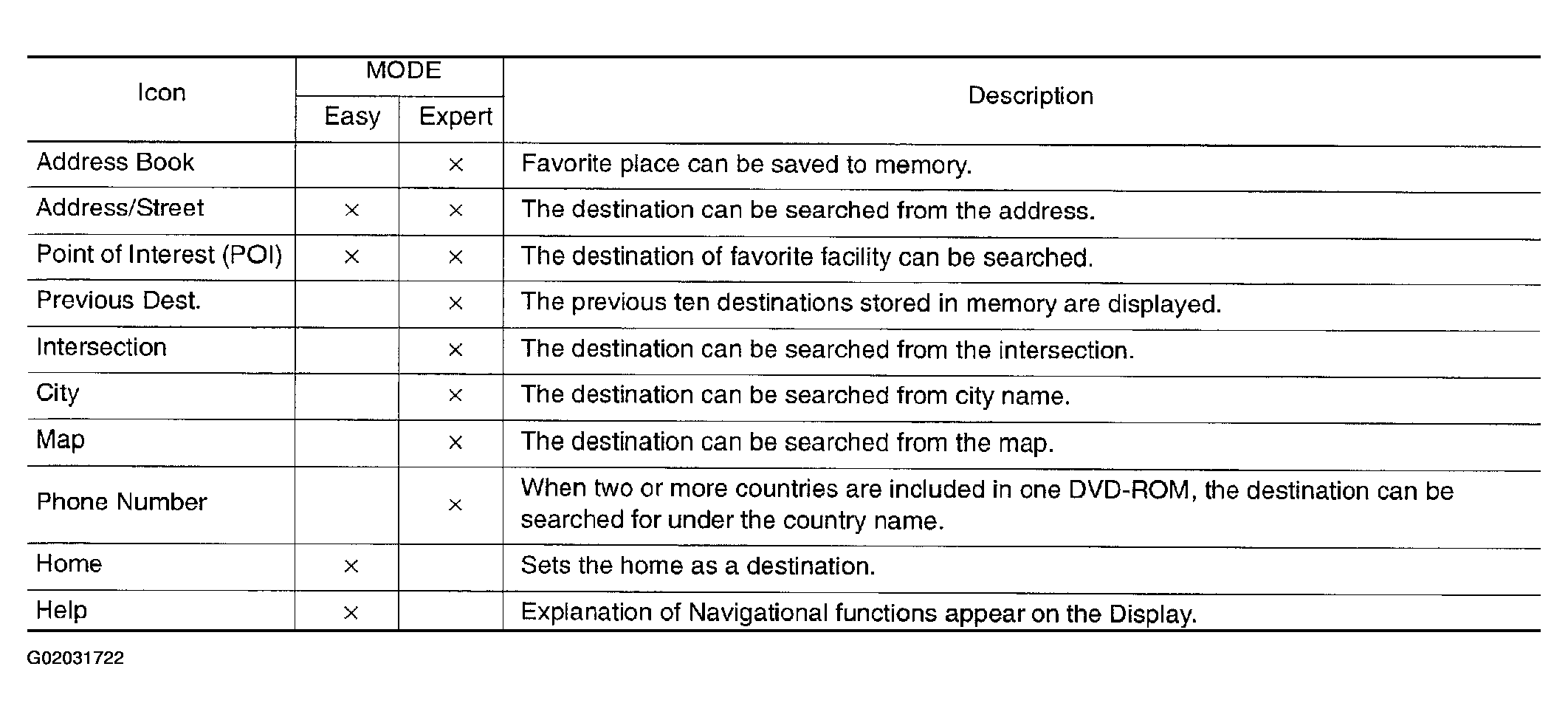

Fig 3: DEST Switch Icon Description Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
