Self-Diagnosis Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to Data Link Connector.
  3. Start engine.
  4. Drive vehicle over 30 km/h (19 MPH) for at least one minute.

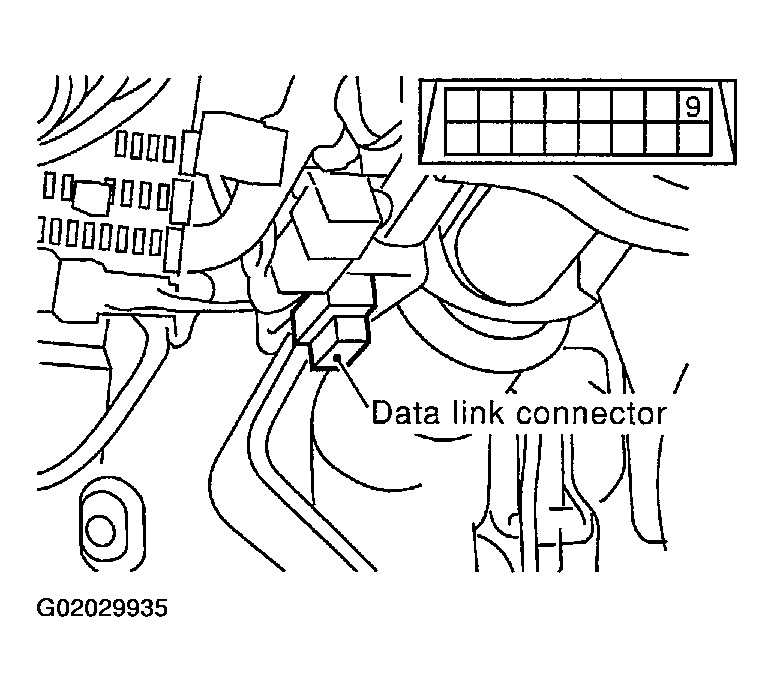

    Fig 1: Identifying Data Link Connector
    G02029935Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Stop vehicle with engine running and touch "START" on CONSULT-II screen.
    Fig 2: CONSULT-II Display - Touch "START"
    G02029936Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "ABS".
    Fig 3: CONSULT-II Display - Touch "ABS"
    G02029937Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SELF DIAGNOSIS RESULTS".
    • The screen shows the detected malfunction and how many times the ignition switch has been turned since the malfunction.
  8. Make the necessary repairs following the diagnostic procedures.

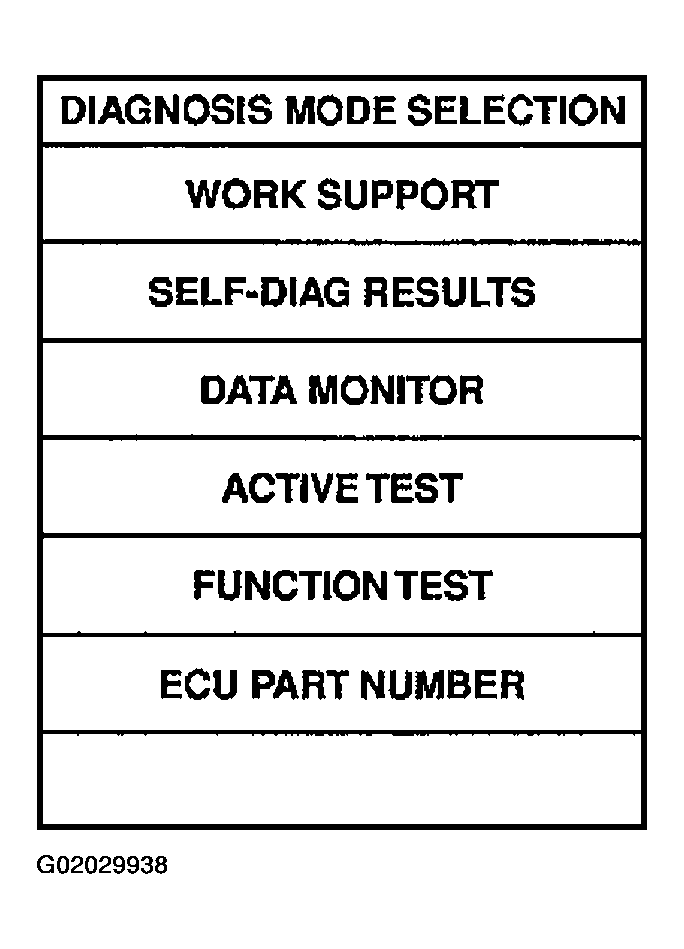

    Fig 4: [CONSULT-II Display - Touch "SELF DIAGNOSIS RESULTS" "OR" "SELF DIAGNOSIS RESULTS" Screen Display
    G02029938Courtesy of NISSAN MOTOR CO., U.S.A.
  9. After the malfunctions are repaired, erase the self-diagnostic results stored in the control unit by touching "ERASE".
  10. Check ABS warning lamp, SLIP indicator lamp, TCS OFF indicator lamp for deactivation after driving vehicle over 30 km/h (19 MPH) for at least one minute.
NOTE: "SELF-DIAG RESULTS" screen shows the detected malfunction and how many times the ignition switch has been turned since the malfunction.
Fig 5: "SELF-DIAG RESULTS" Screen Display
G02029939Courtesy of NISSAN MOTOR CO., U.S.A.
