Engine Cooling System: Radiator: Disassembly

Remove tank with Tool.

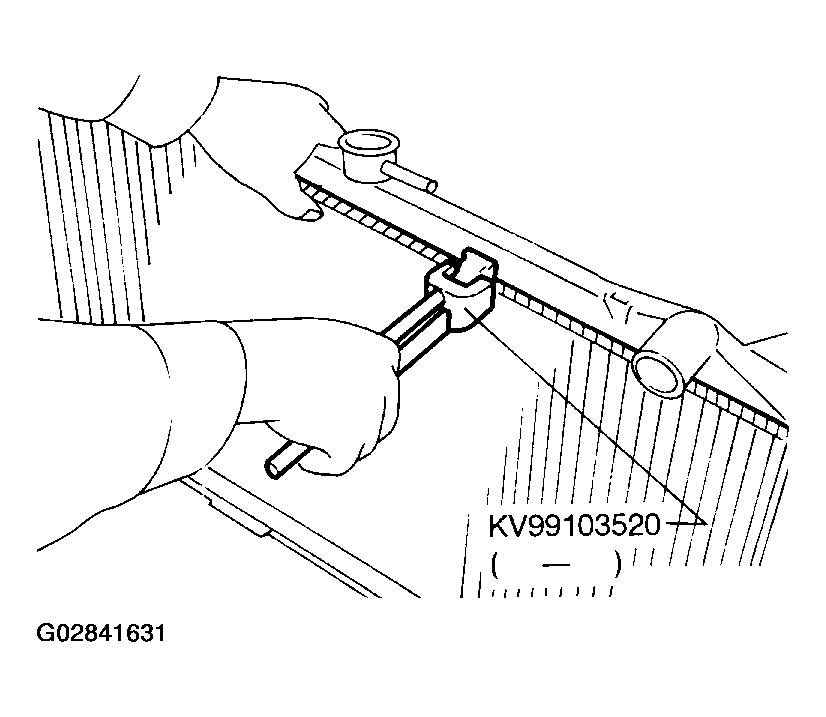

Fig 1: Removing Tank With Tool
- Grip the crimped edge and bend it upwards so that Tool slips off.
  Do not bend excessively.

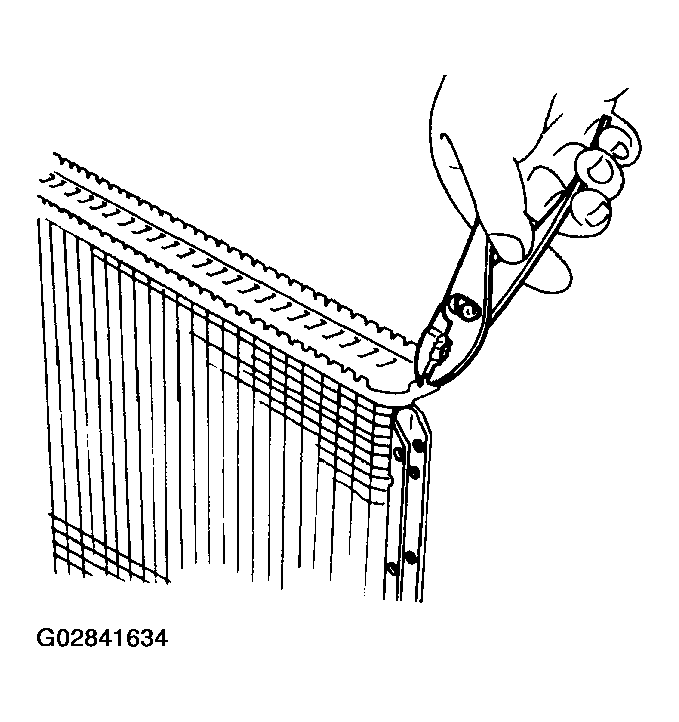

  Fig 2: Gripping Crimped Edge And Bending It Upwards
- In areas where Tool cannot be used, use a screwdriver to bend the edge up.
  Be careful not to damage tank.

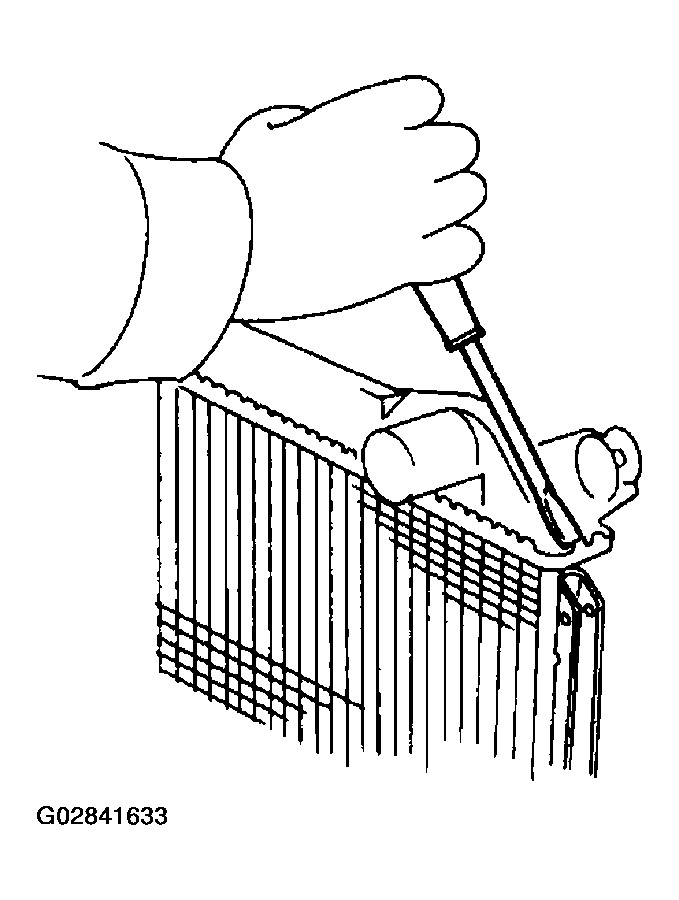

  Fig 3: Bending Edge Up

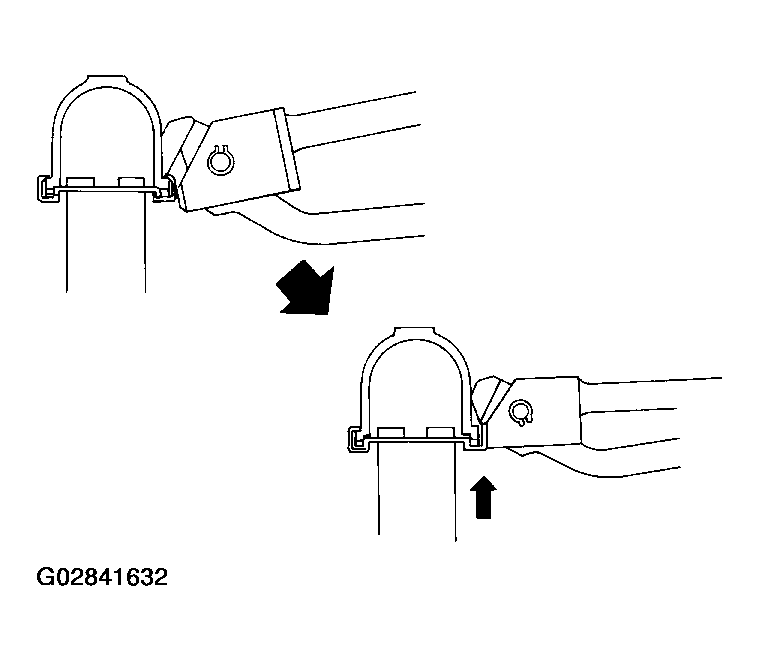

Make sure the edge stands straight up.
Remove oil cooler from tank.

Fig 4: Removing Oil Cooler From Tank
