Data Monitor Procedure

  1. Connect CONSULT-II to data link connector, then start the engine.

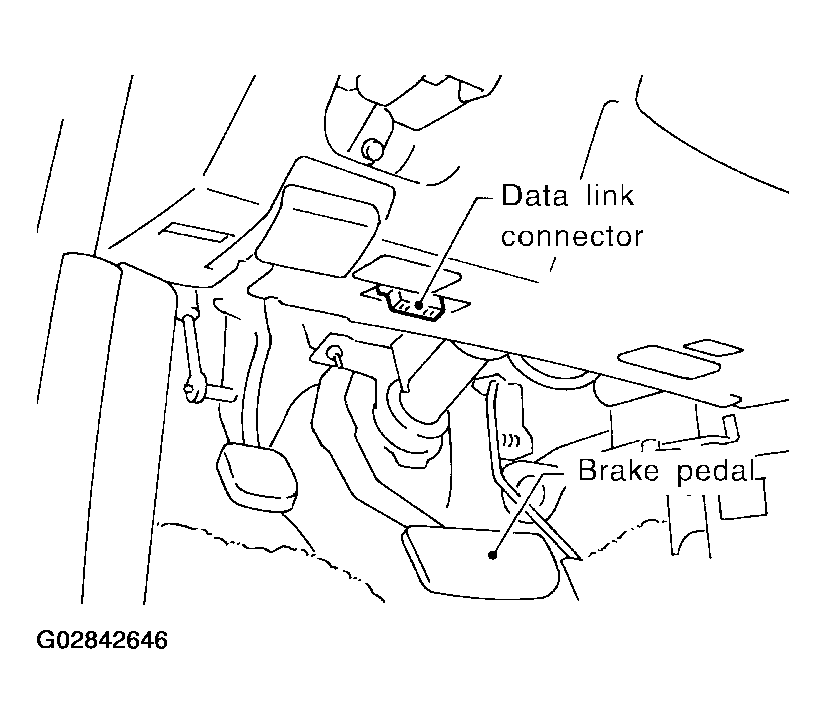

    Fig 1: Identifying Data Link Connector
    G02842646
  2. Touch START, ACT D/SUS and DATA MONITOR.
    Fig 2: Displaying Diagnosis Mode Selection Mode
    G02842647
  3. Select the signal to be monitored.
    1. When ALL SIGNALS is selected, touch START.
    2. When SELECTION FROM MENU is to be selected, touch SETTING. MONITOR ITEM MENU will then be indicated on the display. Touch the item to be monitored, then ENTER and START.
    3. Print out the data if necessary.
      Fig 3: Displaying Data Monitor Mode
      G02842648
