How To Perform

  1. Start the engine.
  2. Push both "MAP" and "D/N" switches at the same time for more than 5 seconds.
  3. Touch "Confirmation/ adjustment".
    Fig 1: Confirmation/Adjustment Display
    G02841400
  4. Touch "Navigation".
    Fig 2: Navigation Display
    G02841401
  5. Touch "Check the map CD-ROM version".
    Fig 3: Check Map CD-Rom Version Display
    G02841402
  6. The version (parts number) of CD-ROM loaded to the display and NAVI control unit will be displayed.

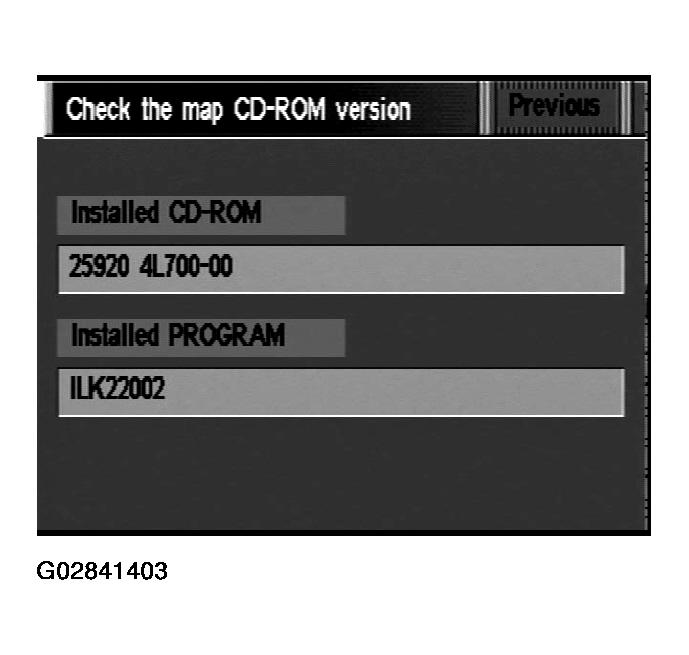

    Fig 4: CD-Rom Display
    G02841403
