DTC P1126: Thermostat Function: Procedure

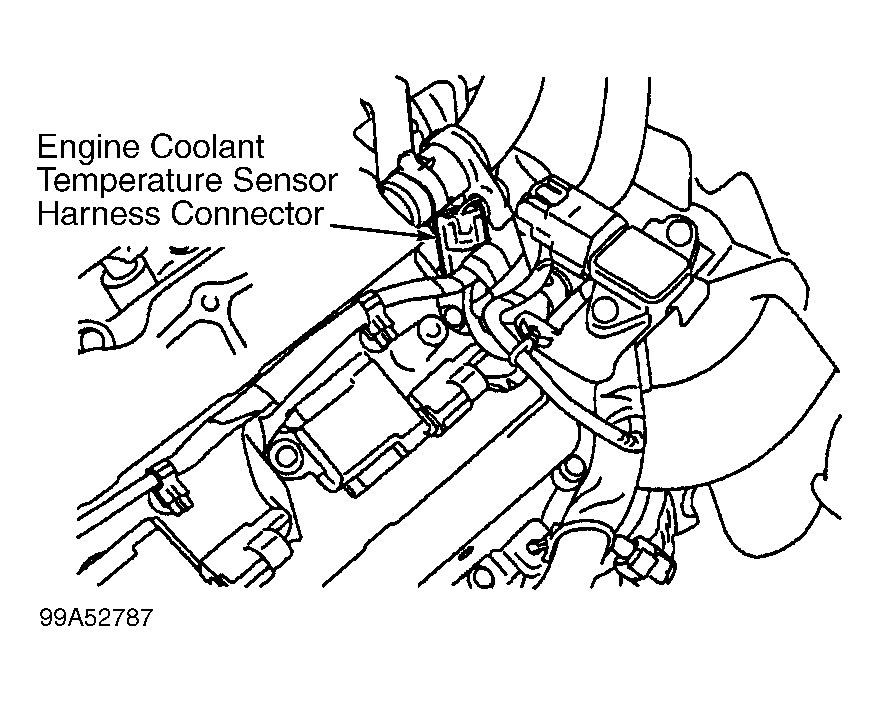

Remove ECT sensor. See Figure. Measure resistance between ECT sensor terminals, with sensor at specified temperatures. See ENGINE COOLANT TEMPERATURE (ECT) SENSOR RESISTANCE table. If resistance is not as specified, replace ECT sensor. If resistance is as specified, test is complete.
ENGINE COOLANT TEMPERATURE (ECT) SENSOR RESISTANCE
| Temperature - °F (°C) | (1) Ohms | ||
|---|---|---|---|
| 68 (20) | 2100-2900 | ||
| 122 (50) | 680-1000 | ||
| 194 (90) | 236-260 | ||
|
|||
