Diagnostic Procedure 3: Main Switch Operates Driver-Side Power Window Only

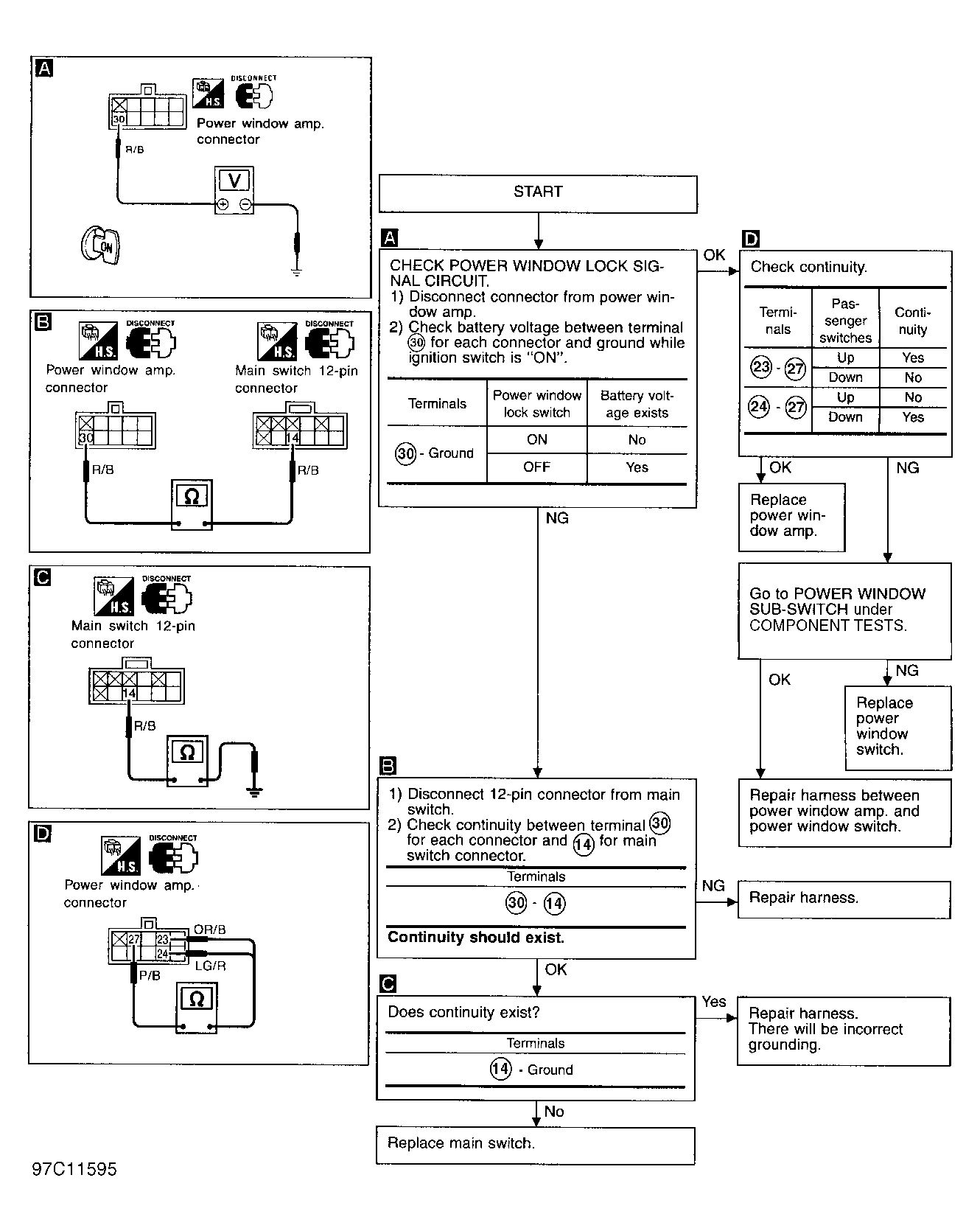

Fig 1: Diagnostic Procedure 3 - Main Switch Operates Driver-Side Power Window Only

G97C11595

Courtesy of NISSAN MOTOR CO., U.S.A.
