Home >> Infiniti >> 1997 >> J30 Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Diagnostic Procedure 1: Driver-Side Power Window Inoperative

Diagnostic Procedure 1: Driver-Side Power Window Inoperative

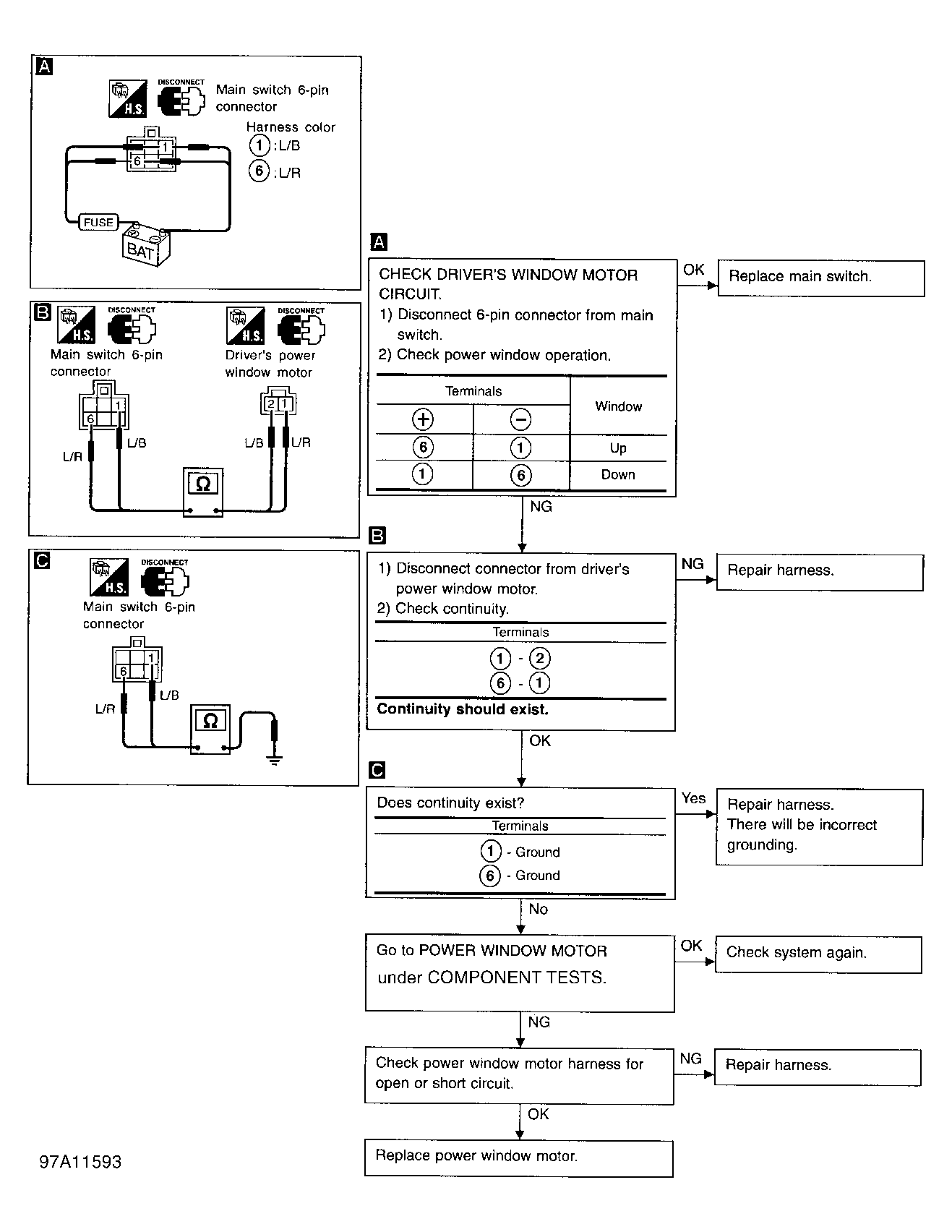

Fig 1: Diagnostic Procedure 1 - Driver-Side Power Window Inoperative

G97A11593

Courtesy of NISSAN MOTOR CO., U.S.A.
