Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Install the component with the specified torques.
  • Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
  • Insert the sensor in the installation hole and be careful not to damage.
  • Apply the engine coolant to the O-ring (A).

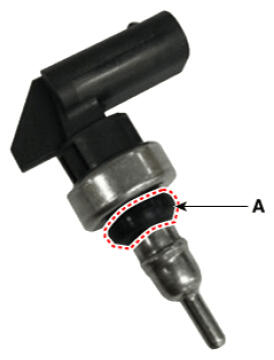

    [ITM Side]

    G16982042Courtesy of HYUNDAI MOTOR AMERICA

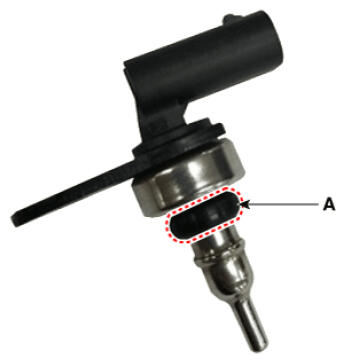

    [Water Pump Side]

    G16982043Courtesy of HYUNDAI MOTOR AMERICA

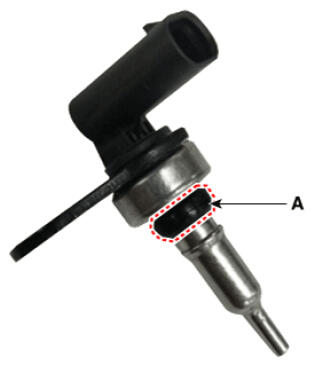

    [Cylinder Block Side]

    G16982044Courtesy of HYUNDAI MOTOR AMERICA

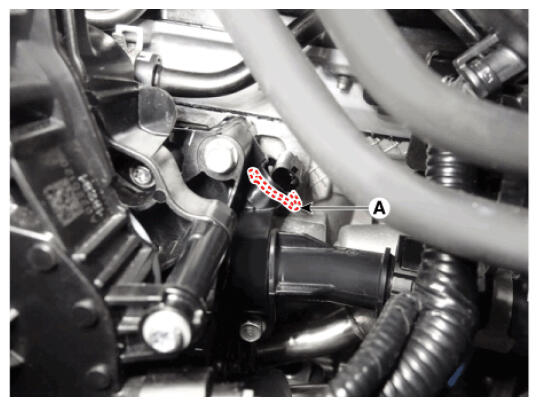

  • Do not reuse the fixing clip (A).
G16982045Courtesy of HYUNDAI MOTOR AMERICA
  1. Install in the reverse order of removal.
  2. Supplement the engine coolant.

    (Refer to Engine Mechanical System - "COOLANT ")
