NFC Key Card Registration with Diagnostic Tools

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

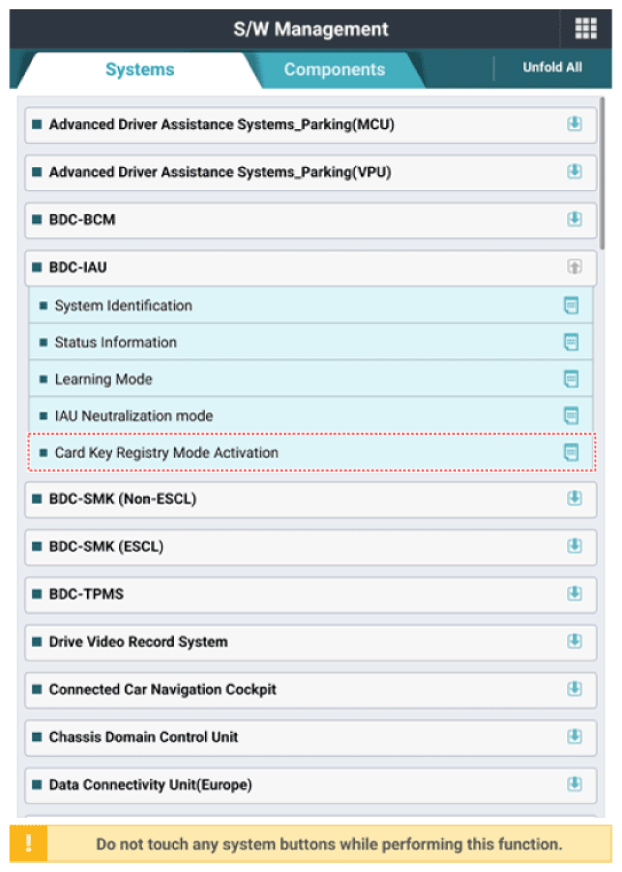

  2. Select the "S/W Management" and "NFC Key Card Registration Mode Activation".
    G16984235Courtesy of HYUNDAI MOTOR AMERICA

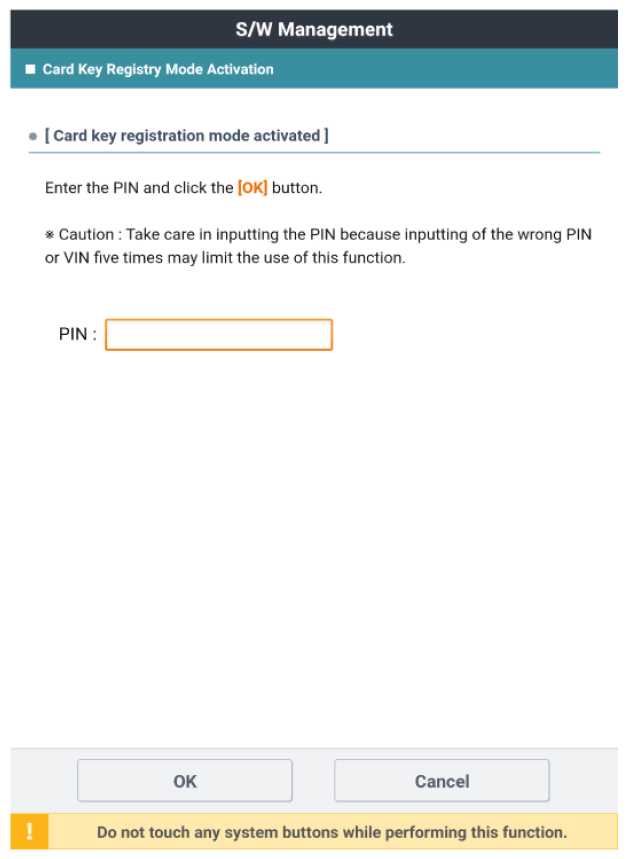

  3. Enter the PIN code and VIN in order.
    G16984236Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • "Card key registration mode activation" is maintained for 5 minutes and it must be carried out again after 5 minutes elapsed.
