Smart Key Antenna (Door)
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery (-) terminal.
- Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

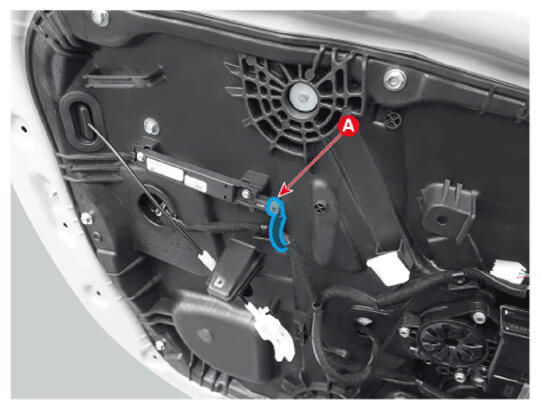

- Disconnect the smart key antenna connector (A).

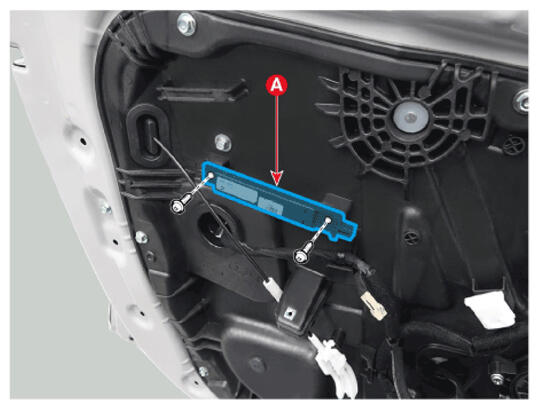

- Remove the smart key antenna (A) after removing the screws.
- Install in the reverse order of removal.
