Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.

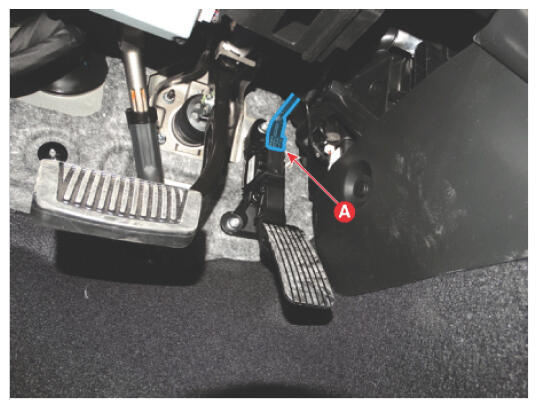

- Disconnect the accelerator pedal module connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

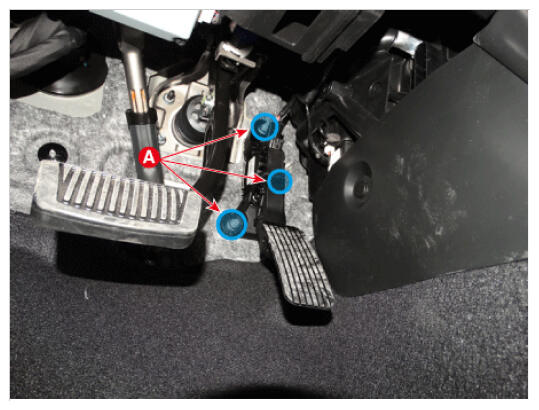

- Remove the accelerator pedal module after removing the nut (A).
Tightening torque
:
11.8 - 15.7 N.m (1.2 - 1.6 kgf.m, 8.7 - 11.6 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
