Smart Key Antenna (Tailgate)
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery (-) terminal.
- Remove the rear transverse trim.
(Refer to Luggage Trim - "REAR TRANSVERSE TRIM ")

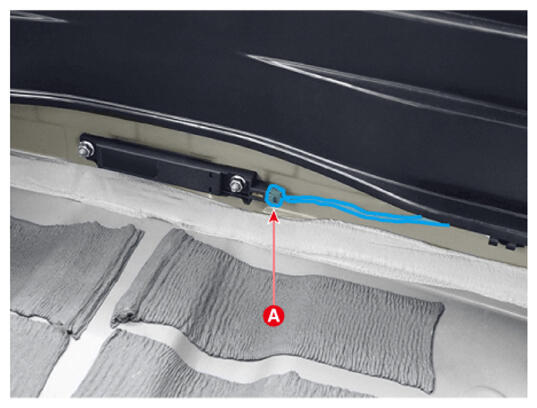

- Disconnect the smart key antenna connector (A).

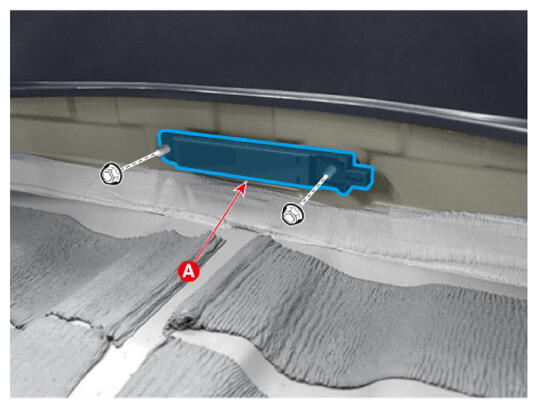

- Remove the smart key antenna (A), after removing the nuts.
- Install in the reverse order of removal.
