Removal And Installation
- Disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

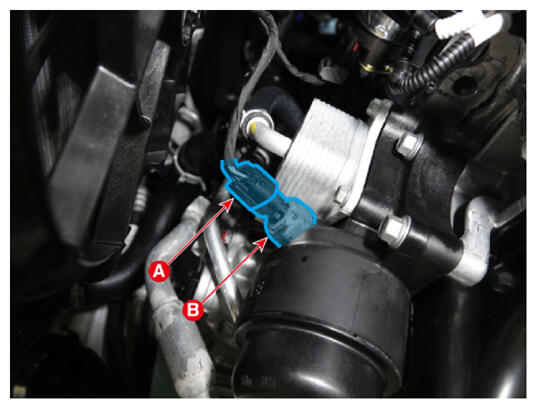

- Disconnect the Oil Pressure & Temperature Sensor (OPTS) connector (A).
- Remove the Oil Pressure & Temperature Sensor (OPTS) (B).
Tightening torque:
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 Ib-ft)
- Install in the reverse order of removal.
