Oil Temperature Sensor (Main Harness): Removal

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
Automatic transaxle is composed of delicate components. Be careful not to cause any damage to the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

Disconnect the battery (-) terminal.

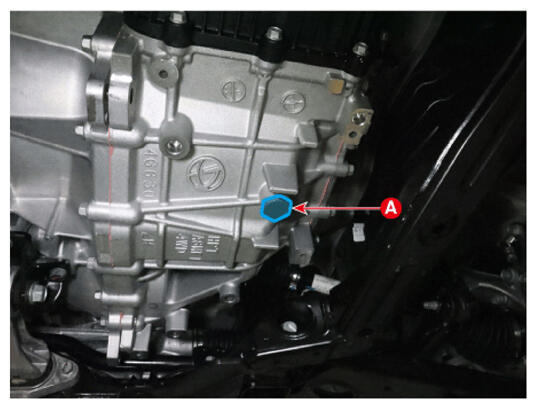

Drain the ATF totally after removing the drain plug (A).
Reinstall the drain plug.
Tightening torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Replace the gasket before reinstalling the drain plug.

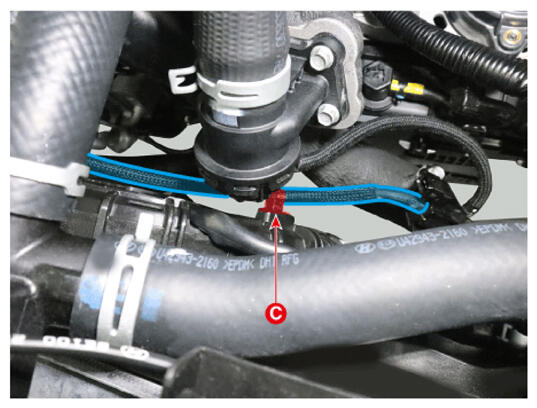

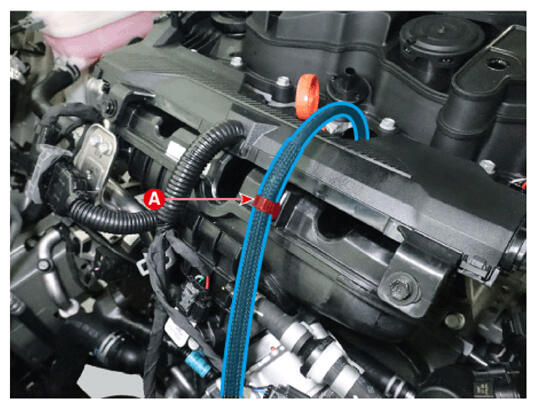

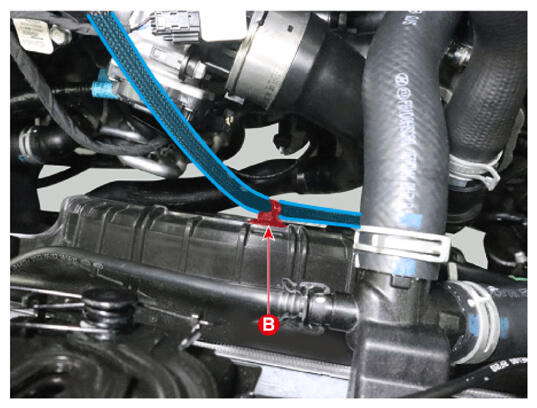

Separate the wiring clip (A, B, C).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

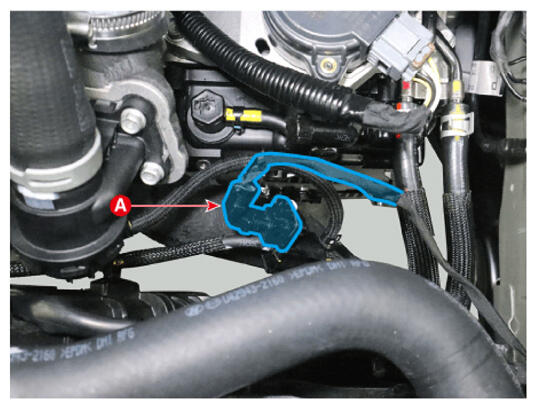

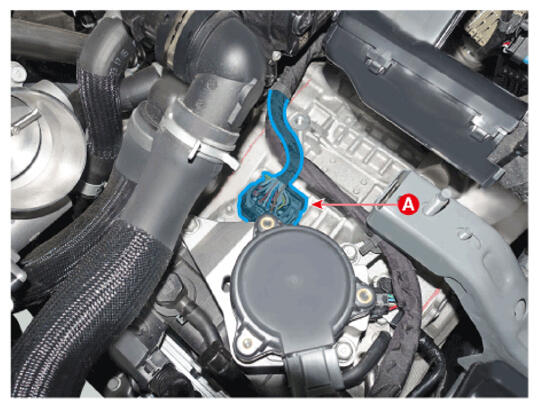

Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

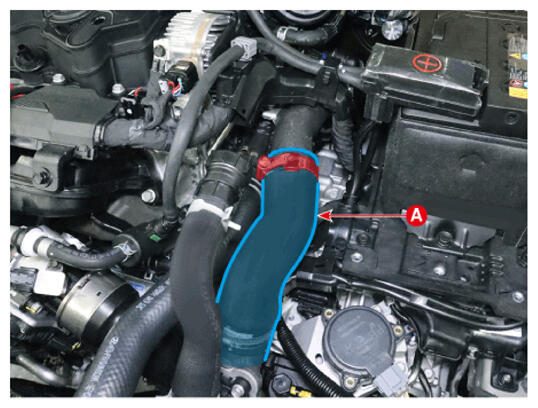

Remove the upper intercooler hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

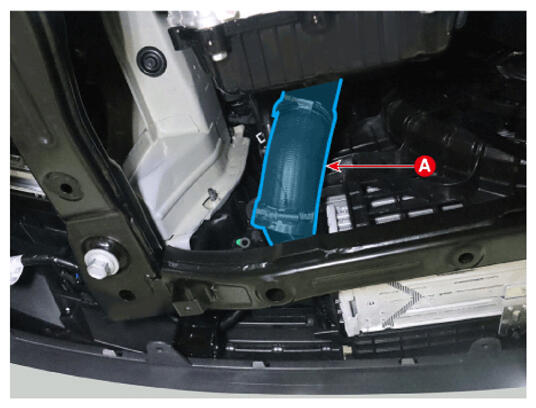

Remove the intercooler hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

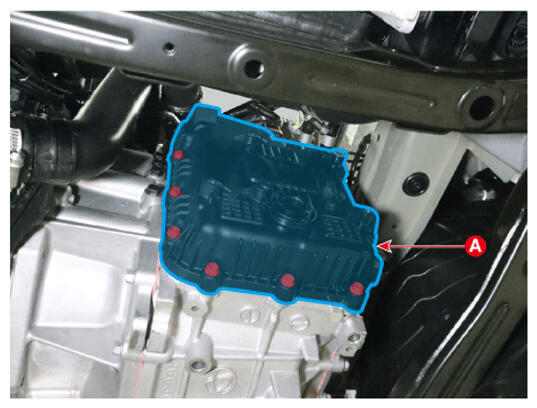

Remove the valve body cover (A) after removing the bolts.
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover.
CAUTION:

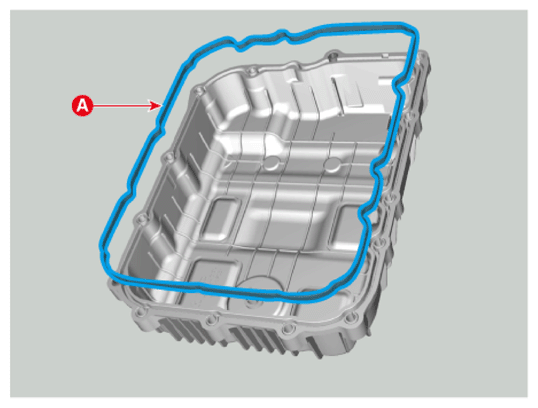

- Replace the gasket (A) before reinstalling the valve body cover.
- After the installation, start the engine and then check if there are any leakages from the valve body cover.
Courtesy of HYUNDAI MOTOR AMERICA

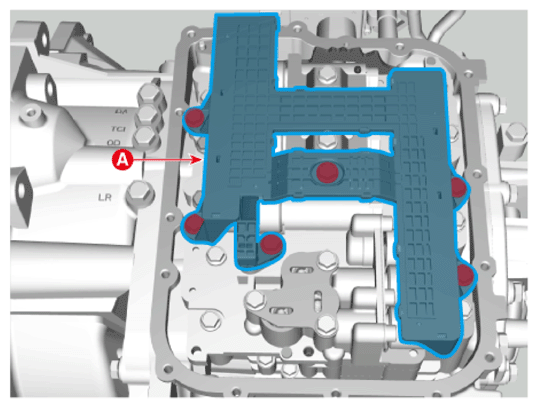

Separate the main harness (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

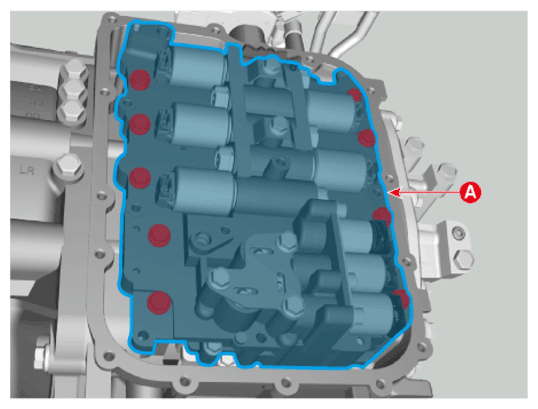

Remove the valve body assembly (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:

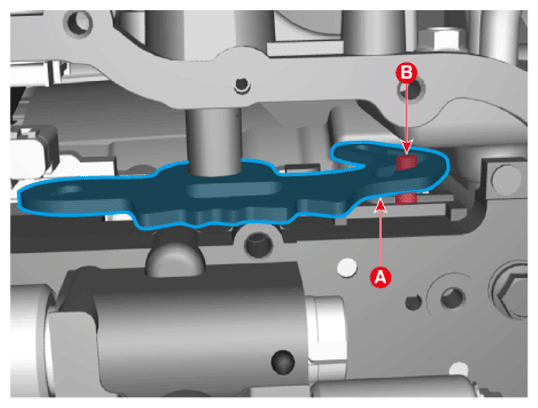

- Attach the manual pin (B) to the detent lever (A) and assemble the valve body.
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the speed sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

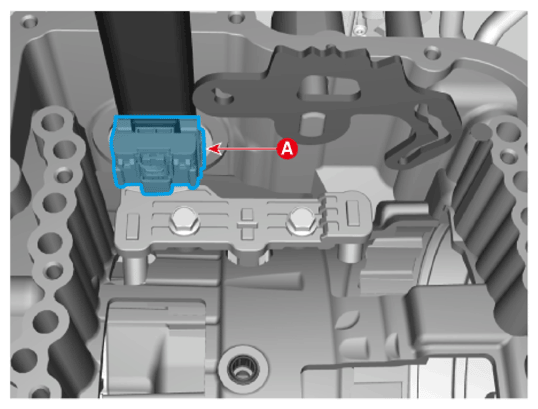

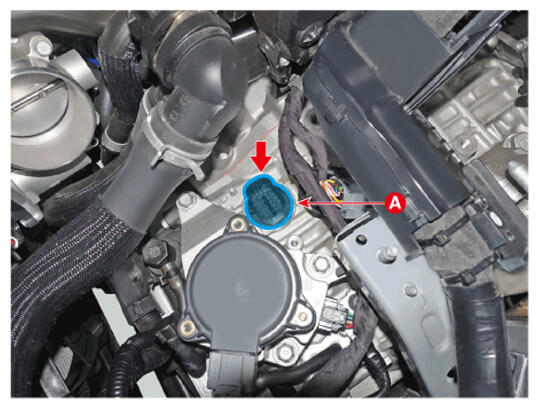

Disconnect the main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the fixing clip (A) after removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the main connector (A) after pressing the main connector.

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

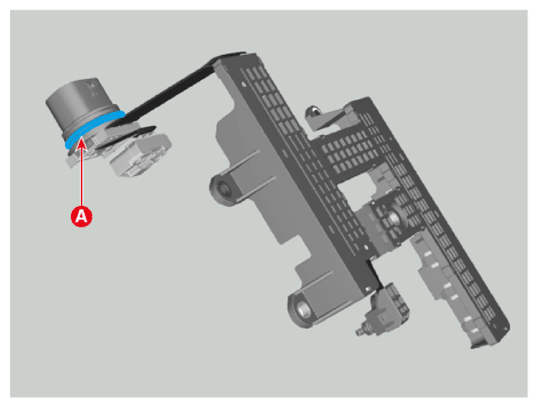

Replace the O-Ring (A) before reinstalling main connector.

Courtesy of HYUNDAI MOTOR AMERICA
