Front Impact Sensor (FIS): Removal

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing using a remover, be careful not to damage the parts.
Take care not to bend or scratch the trim and panels.

Disconnect the battery (-) terminal.
WARNING:
- After disconnecting the battery (-) terminal, wait at least 3 minutes.

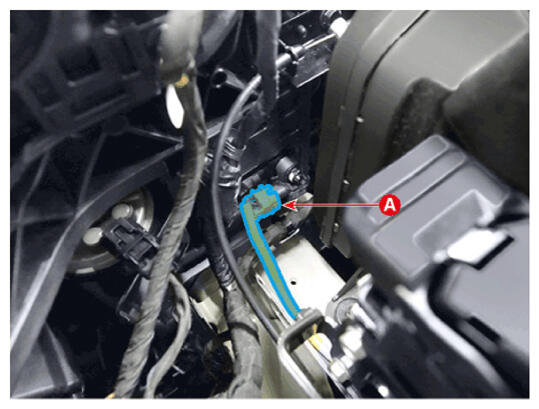

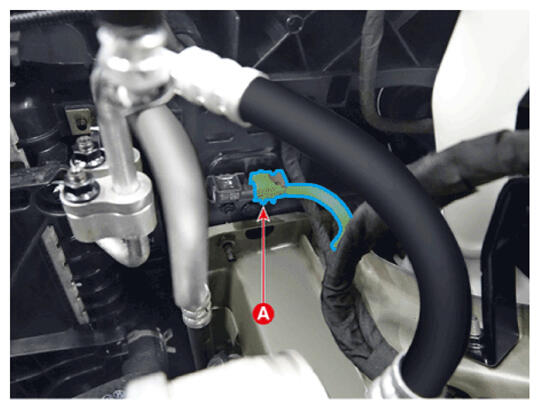

Disconnect the FIS connector (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

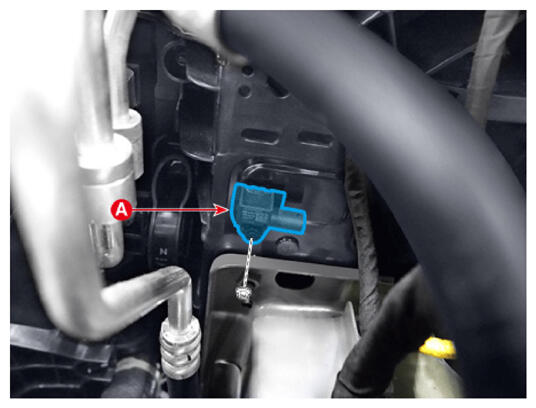

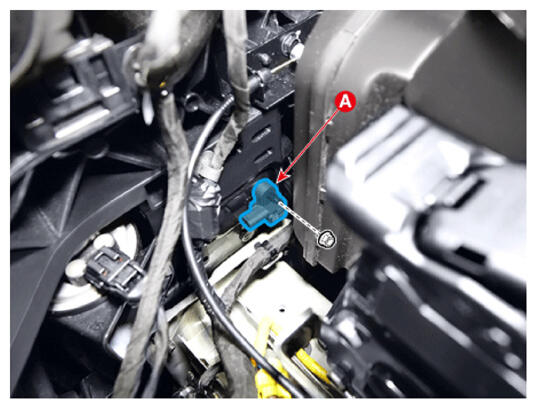

Remove the FIS (A), after removing the nut.
Tightening torque:

7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
