Removal And Installation
- Disconnect the battery negative (-) terminal.

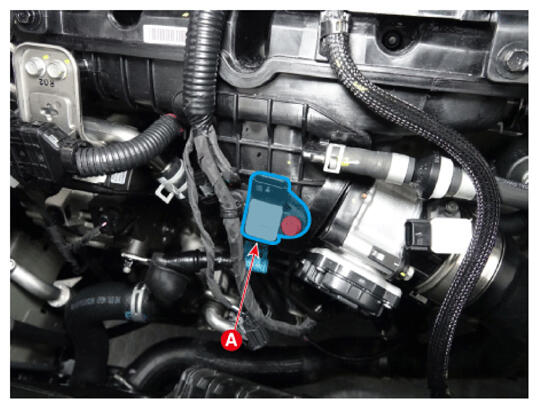

- Disconnect the Manifold Absolute Pressure Sensor & Intake Air Temperature Sensor (MAPS & IATS) connector (A).

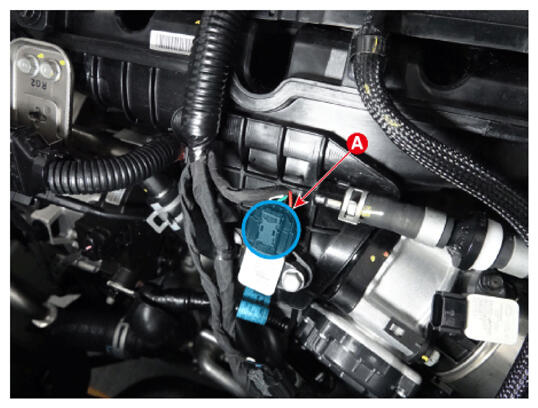

- Remove the Manifold Absolute Pressure Sensor & Intake Air Temperature Sensor (MAPS & IATS) (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
- Install in the reverse order of removal.
