Removal And Installation

Disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the intercooler inlet pipe.
(Refer to Engine Mechanical System - "INTERCOOLER ")

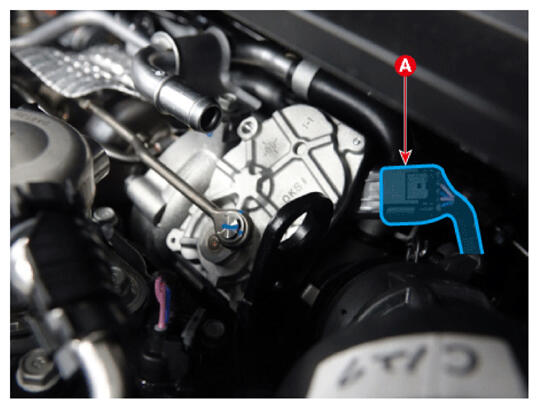

Disconnect the Electric Waste Gate Actuator (EWGA) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

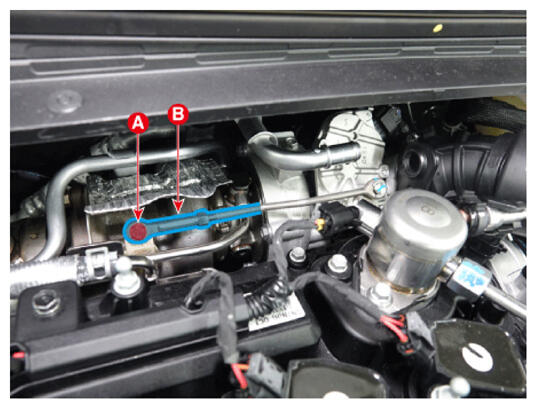

Remove the retaining ring (A) from the electric waste gate actuator rod (B).

Courtesy of HYUNDAI MOTOR AMERICA

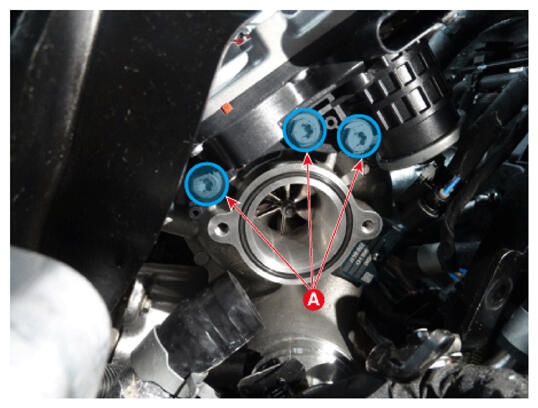

Remove the Electric Waste Gate Actuator (EWGA) after removing the bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
