Repair Procedures: Inspection

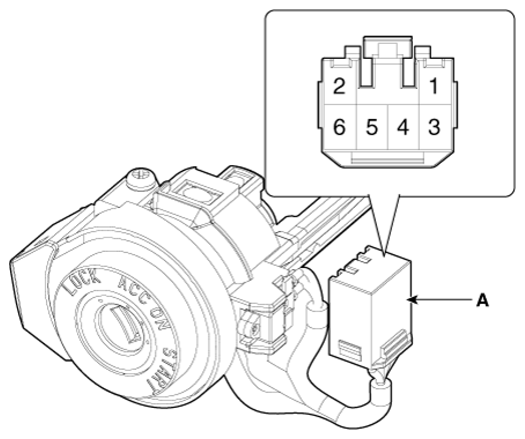

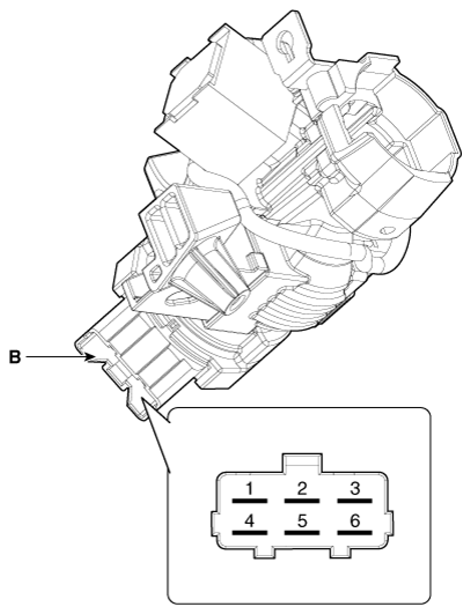

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G16694439Courtesy of HYUNDAI MOTOR AMERICA
    G16694440Courtesy of HYUNDAI MOTOR AMERICA

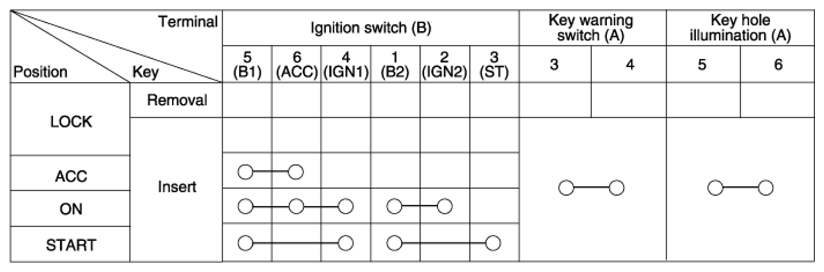

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G16694441Courtesy of HYUNDAI MOTOR AMERICA
