Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat. (Refer to Body - "REAR SEAT ")

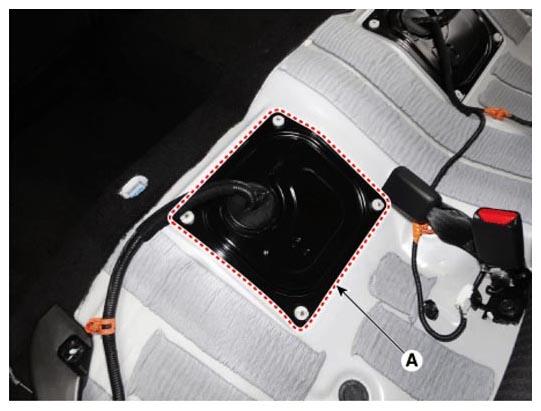

  3. Remove the fuel pump service cover (A).
    G16734298Courtesy of HYUNDAI MOTOR AMERICA

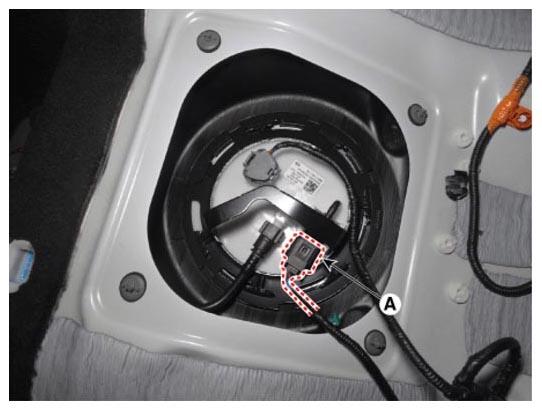

  4. Disconnect the fuel tank pressure sensor connector (A).
    G16734299Courtesy of HYUNDAI MOTOR AMERICA

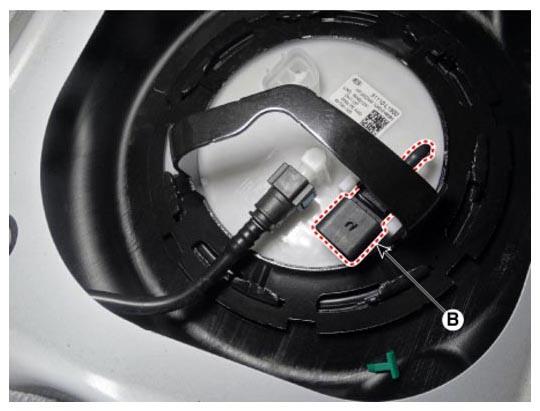

  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G16734300Courtesy of HYUNDAI MOTOR AMERICA
