Component Inspection

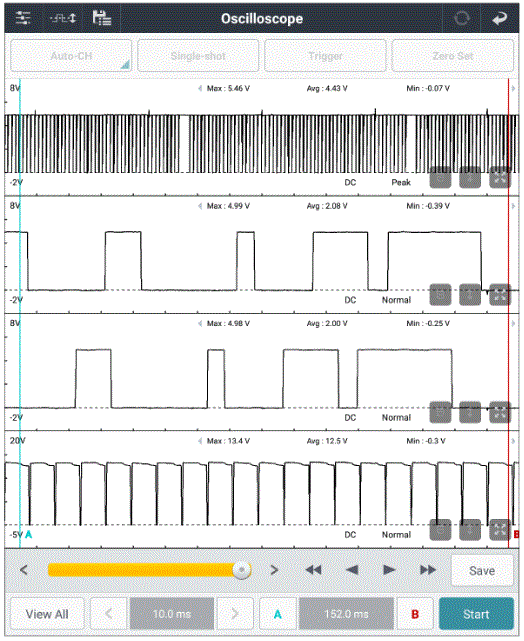

  1. Check signal waveform of CKPS and CMPS using a diagnostic tool.

    Specification:  Refer to "Figure below"

    G00644047Courtesy of HYUNDAI MOTOR AMERICA
