Home >> Hyundai >> 2024 >> Santa Cruz XRT >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Control System - 2.5T >> Position Switch >> Repair Procedures >> Inspection >> Inspection flow

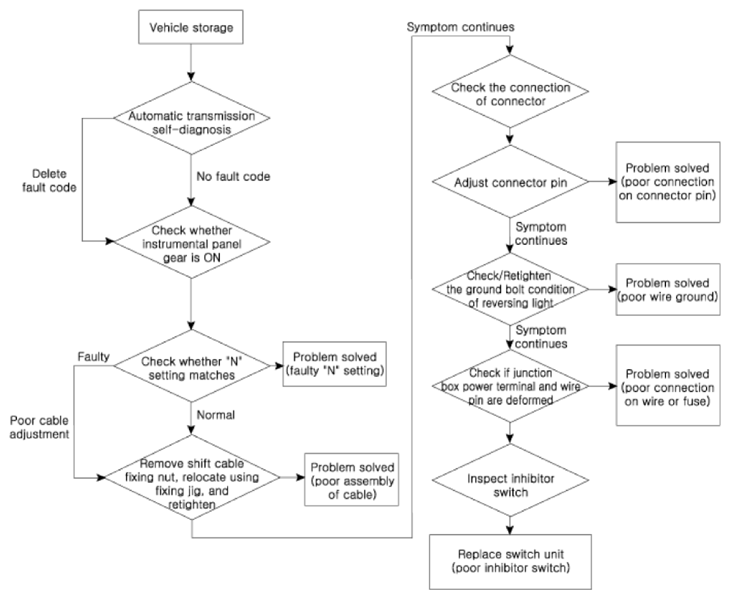

Inspection flow

G14794227Courtesy of HYUNDAI MOTOR AMERICA
