Home >> Hyundai >> 2024 >> Santa Cruz XRT >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Control System - 2.5T >> Position Switch >> Components And Components Location >> Components

Components And Components Location: Components

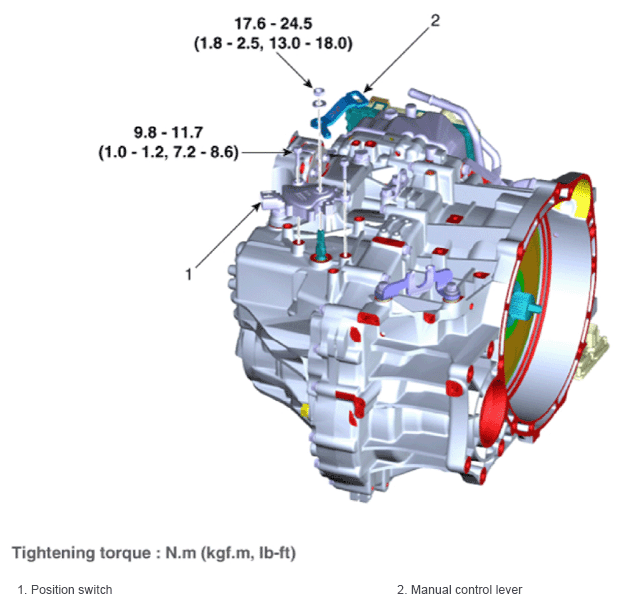

Fig 1: Position Switch Components Location With Torque Specifications

G14794226

Courtesy of HYUNDAI MOTOR AMERICA
