Home >> Hyundai >> 2024 >> Santa Cruz XRT >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> 4WD Control System Diagnosis >> DTC P1956-11: AWD Pressure Sensor-Power Line Fault >> Troubleshooting >> Diagnostic Flowchart

Diagnostic Flowchart

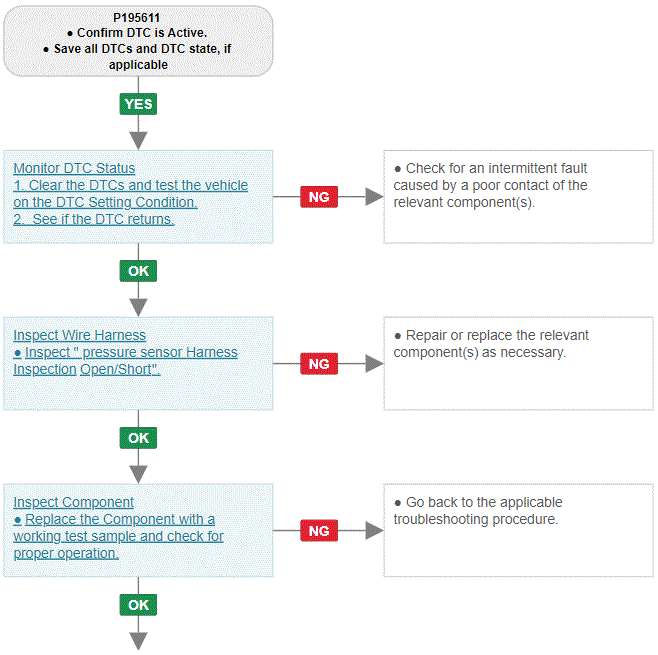

Fig 1: 1 Of 2
G14781972Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
G00616363Courtesy of HYUNDAI MOTOR AMERICA
