[Bank 1/Sensor 1]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

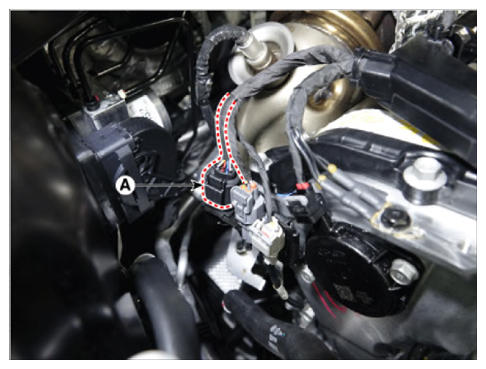

- Disconnect the heated oxygen sensor connector (A).

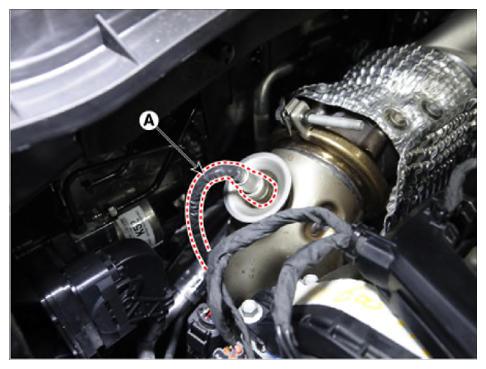

- Remove the heated oxygen sensor (A).NOTE:
- Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
Tightening torque:
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)
