Engine Coolant Temperature Sensor (ECTS) #3 [Cylinder Block Side]
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

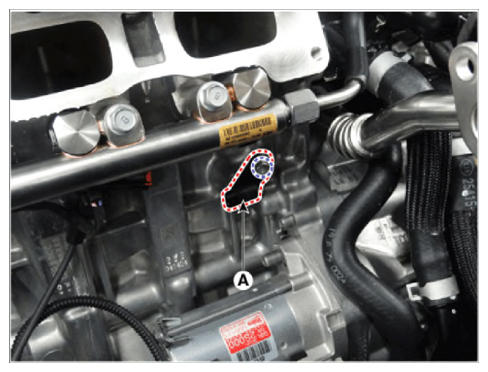

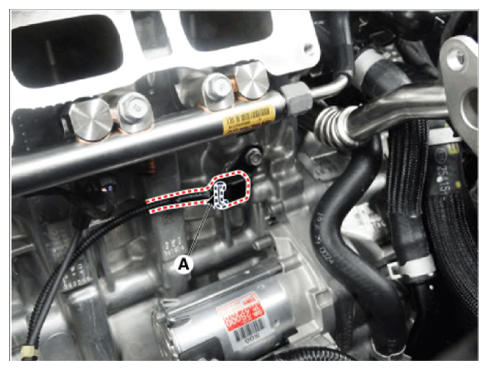

- Disconnect the engine coolant temperature (ECTS) sensor (A).
- Remove the ECTS (A) after loosening the mounting bolt.
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
