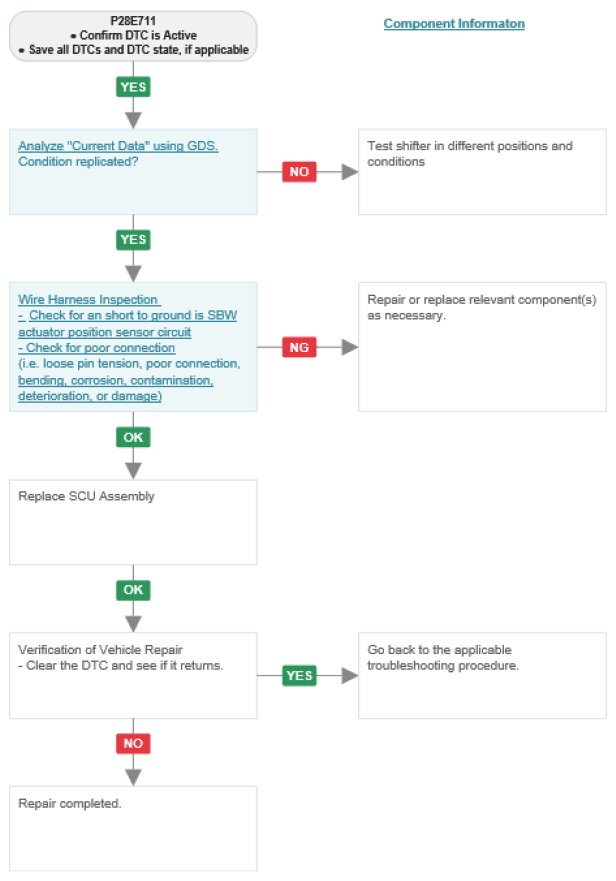

Home >> Hyundai >> 2024 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> SBW Control Unit Diagnosis >> DTC P28E7-11: SBW Actuator Encoder Error - Circuit Short To Ground >> Troubleshooting >> Diagnostic Flowchart
