Special Service Tools
| Tool Name/Number | Illustration | Description |
|---|---|---|

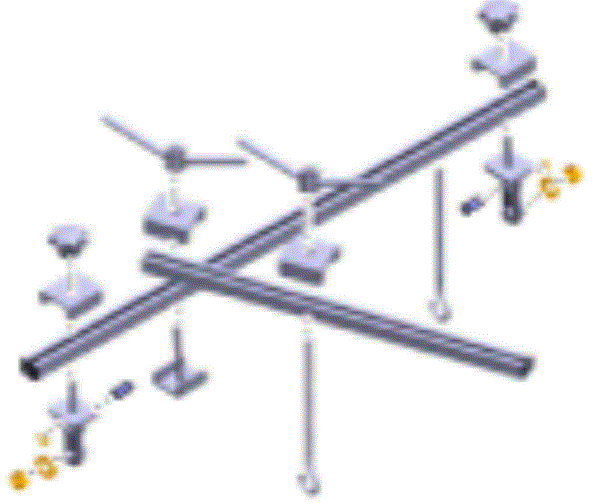

| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this beam (SST No.:09200-38001 or 09200-3N000) with the supporter (SSTNo.: 09200-2S000). |
|
| 09200-2S000 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this supporter (SST No.: 09200-2S000) with the beam (SST No.: 09200-38001 or 09200-3N000). |
|
| 09453-3L240 Oil seal installer | 2WD: Installation of the differential oil seal in the transaxle case and housing side 4WD: Installation of the differential oil seal in the housing side [Using with bar (SST No.:09231-H1100)] | |
| 09430-B8100 Oil seal installer | 4WD: Installation of the differential oil seal in the housing side [Using with bar (SST No.:09231-H1100)] |
|
| 09231-H1100 Bar | Installation of the differential oil seal in the transaxle case and housing side. [Using with oil seal installer] | |
| 09459-4G100 Position sensor neutral fixed jig |
Used to align the neutral position when installing the position sensor. |
