Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedures.
NOTE:

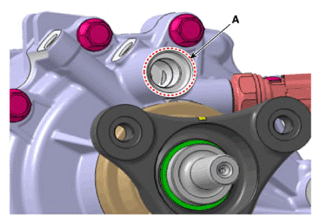

- Wipe foreign substance on the cover tab (A) with a clean cloth before assembling.
- Check the O-ring (B) of the relief and apply suitable amount of Loctite 592 on the screw area (C)
- Be careful not to let any foreign substance inside the relief valve and cover
