Diagnostic Flowchart

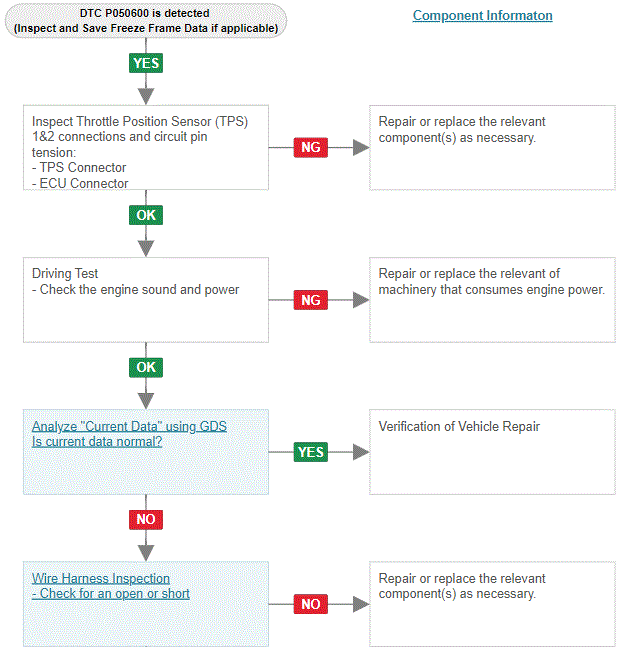

Fig 1: 1 Of 3

Courtesy of HYUNDAI MOTOR AMERICA

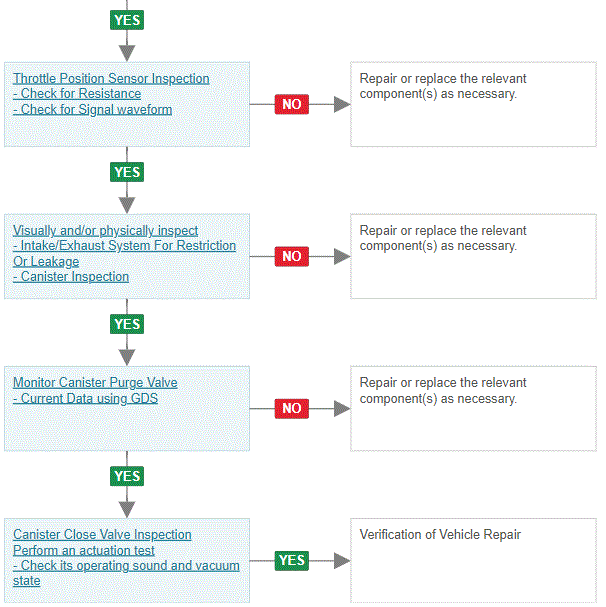

Fig 2: 2 Of 3

Courtesy of HYUNDAI MOTOR AMERICA

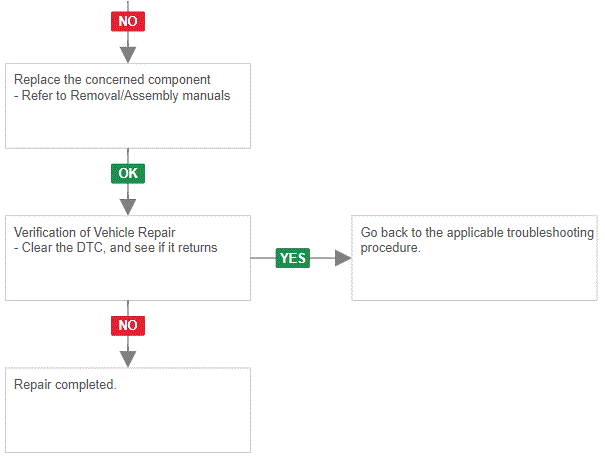

Fig 3: 3 Of 3

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Replace the throttle body assembly or Engine Control Module (ECM). Then initialize the throttle position and perform the learning process again. Clear the previous TPS learnt value with the GDS.
