Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the floor console upper cover. (Refer to Body - "FLOOR CONSOLE ")

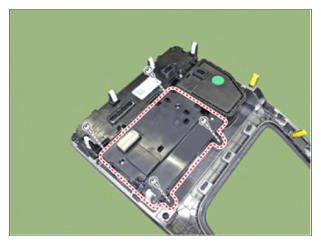

  3. Remove the DBC switch (A) after loosening the screw.
    G15472596Courtesy of HYUNDAI MOTOR AMERICA
