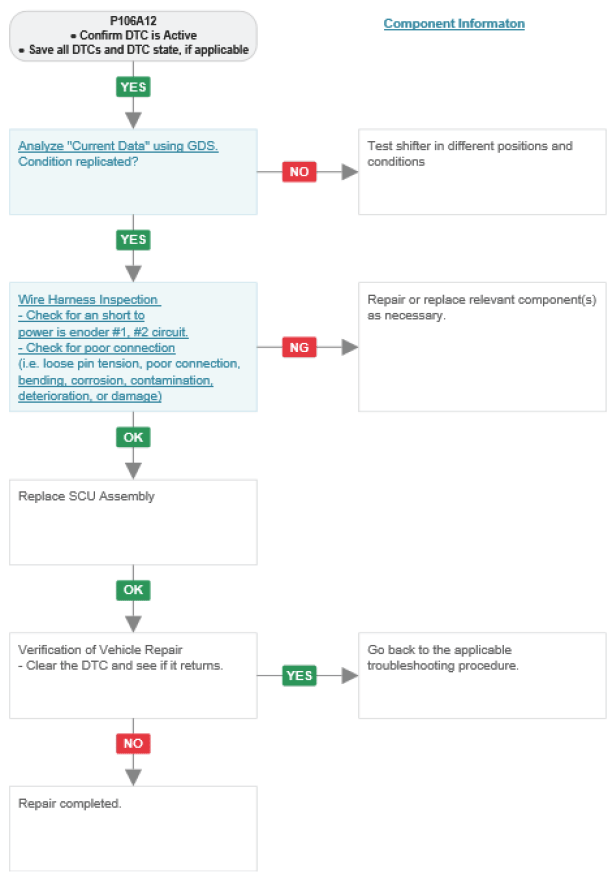

Home >> Hyundai >> 2024 >> Palisade Calligraphy, 4WD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> SBW Control Unit Diagnosis >> DTC P106A-12: SBW Actuator Encoder Error - Circuit Short To Battery >> Troubleshooting >> Diagnostic Flowchart
