Home >> Hyundai >> 2024 >> Kona N Line, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> SBW Control Unit (SCU) Diagnosis >> DTC U0121-83: Lost Communication With Anti-Lock Brake System (ABS) Control Module >> Troubleshooting >> Diagnostic Flowchart

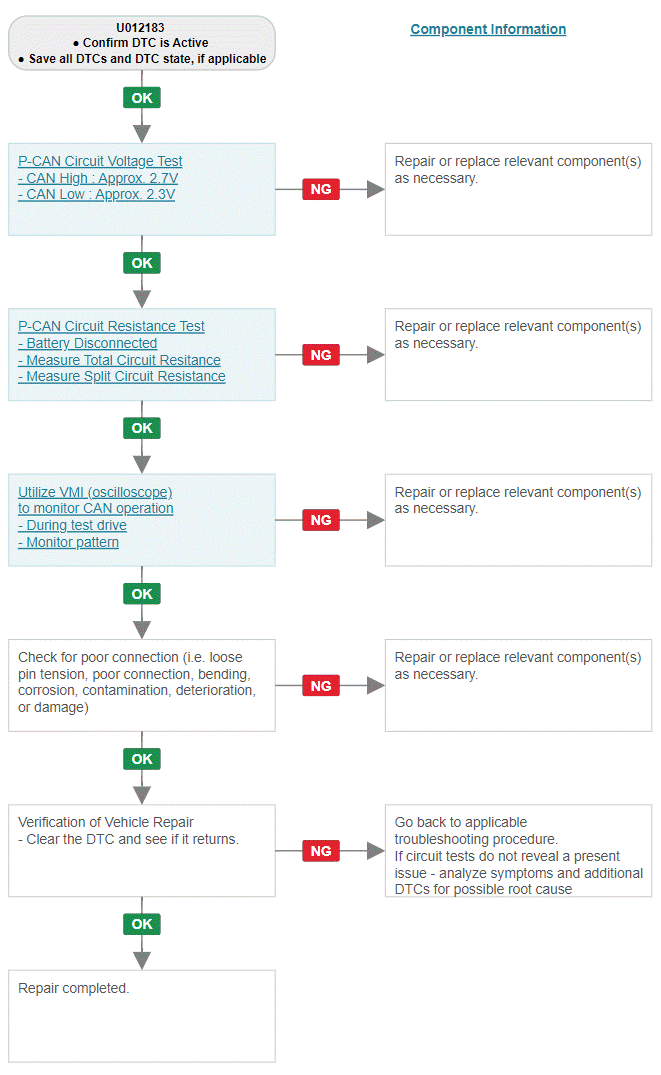

Diagnostic Flowchart

G16624970Courtesy of HYUNDAI MOTOR AMERICA
