Components And Components Location

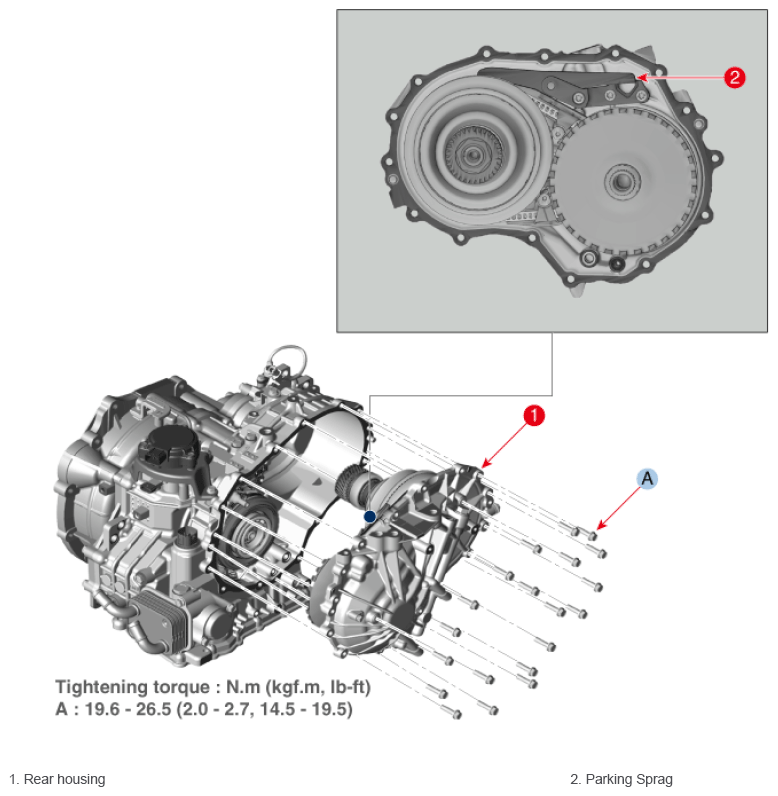

Fig 1: Parking Sprag Components Location With Torque Specification

G16543579

Courtesy of HYUNDAI MOTOR AMERICA
