ESC Control Unit: Removal

Disconnect the battery (-) terminal.
Drain the coolant. (Refer to Engine Mechanical System - "COOLANT ")

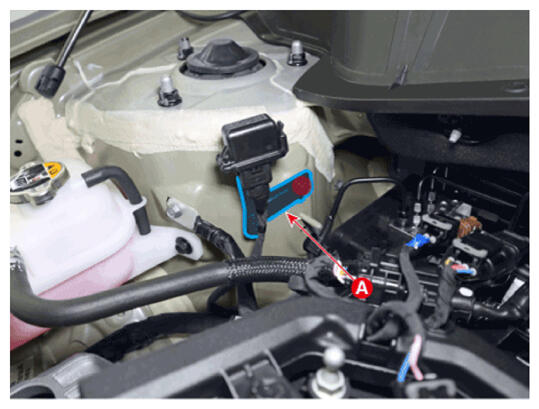

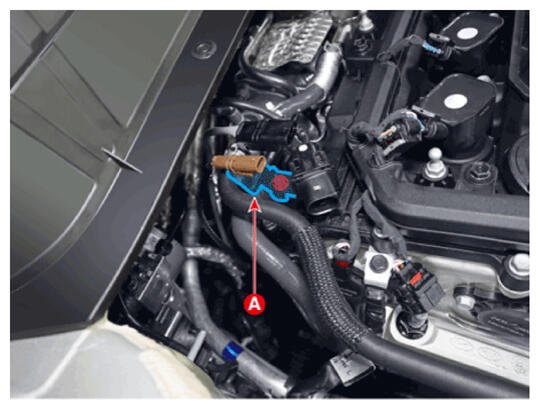

Remove the diagnostic connector bracket (A) after removing the bolts.
Tightening torque:

6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

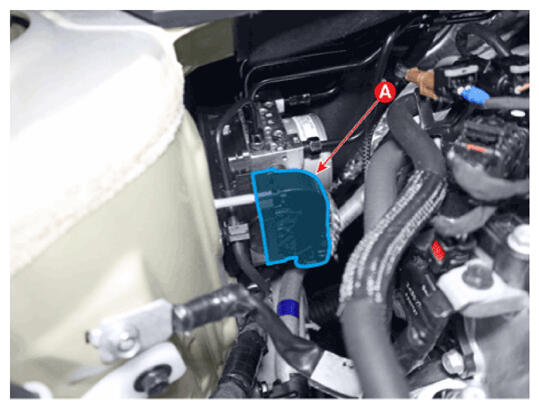

Disconnect the ESC control unit (HECU) connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

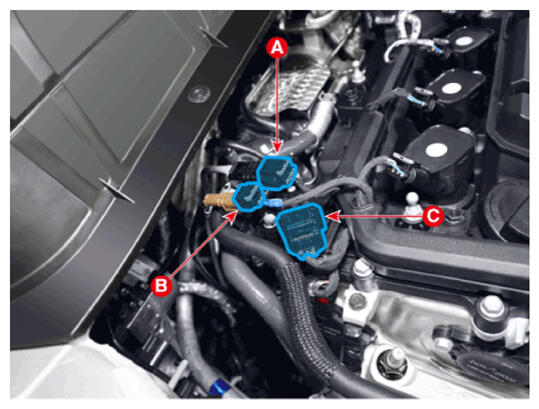

Disconnect the heated oxygen sensor (HO2S) connectors (A), (B) and extension wiring connector (C).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the connector bracket (A) after removing the bolt.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

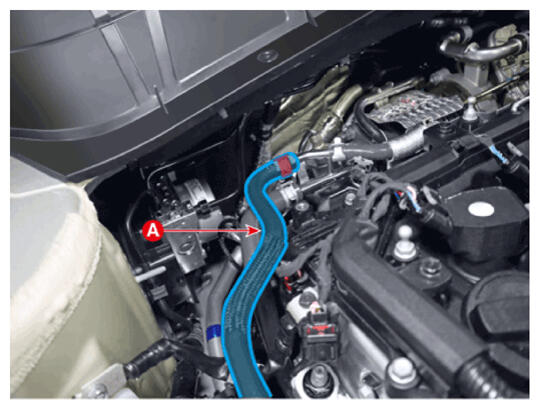

Disconnect the water hose (A) after releasing the clamp.

Courtesy of HYUNDAI MOTOR AMERICA

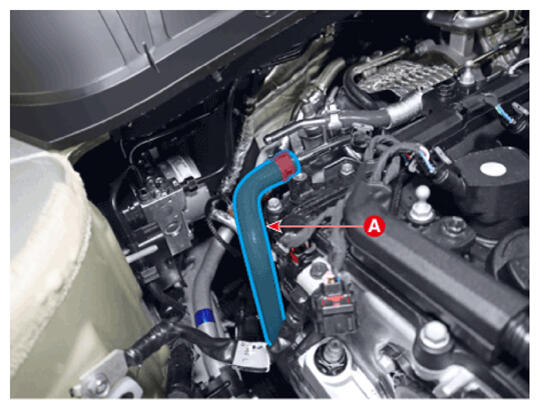

Disconnect the turbocharger outlet hose (A) after releasing the clamp.

Courtesy of HYUNDAI MOTOR AMERICA

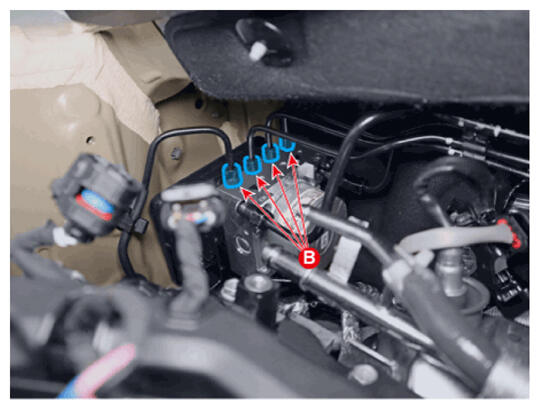

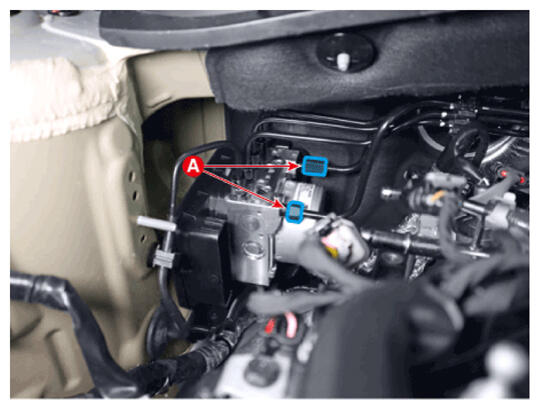

Disconnect the brake tube (A), (B) after removing the flare nuts.
Tightening torque:

(A): 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

(B): 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the brake tube when connecting or disconnecting.
- Install the flare nuts correctly to fit the brake tube securely.

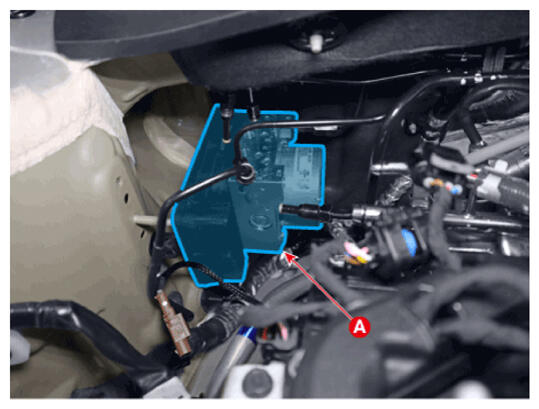

Remove the ESC Control Unit (A) after removing the nuts.
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to impact the ESC control unit.
