How To Check/Adjust Front Radar Installation Angle - Stop Mode

Information

Preparation before the front radar alignment:

NOTE:

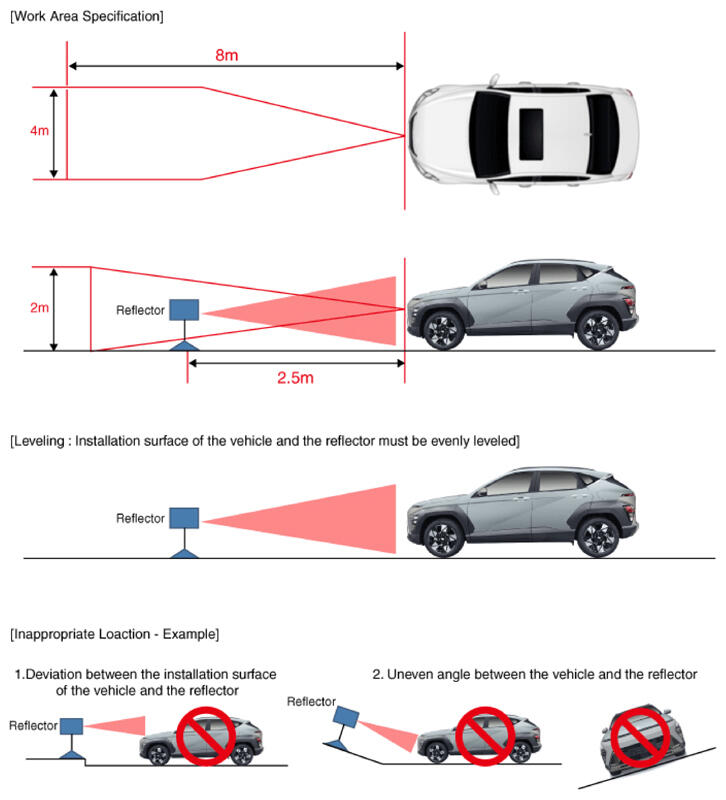

  • Perform in an area with minimum clearance of 8m (26.2 ft) front, 4m (13.1 ft) sides, and 2 m (6.6 ft) above the vehicle.
  • Install the reflector exactly 2.5 m (8.2 ft) away from the Front Radar.
  • The reflector has to be installed at same place (height and angle) as front radar center.

    (If height and angle are different, then adjustment can not be done correctly.)

  • Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
  • Make sure to use exclusive reflector (OK964-J5100)
  • Be sure that the vehicle is not moved and free from vibration when performing front radar alignment (getting in/out or opening/closing doors).
  • IG has to be on when performing front radar alignment. (engine stop condition)
  1. Stop the vehicle horizontally at a flat place.
    G16547324Courtesy of HYUNDAI MOTOR AMERICA

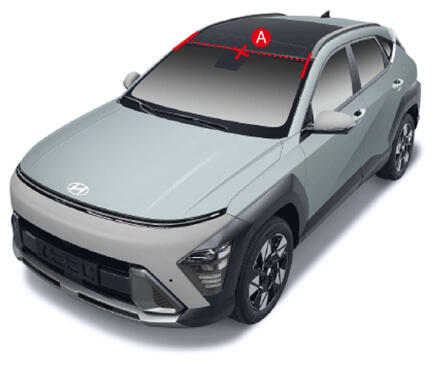

  2. Mark the center point (A) after measuring the distance on top of wind glass.
    G16547325Courtesy of HYUNDAI MOTOR AMERICA

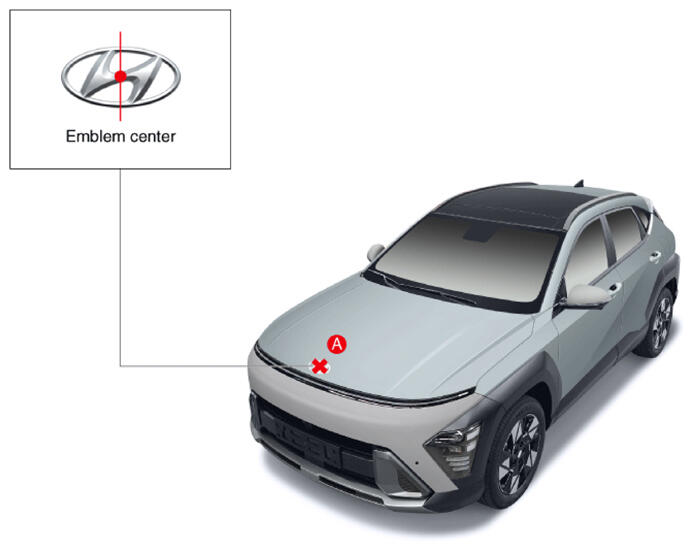

  3. Mark the center point of emblem (A).
    G16547326Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the laser (09964-C1200) to the tripod (09964-C1300).
    G16547327Courtesy of HYUNDAI MOTOR AMERICA

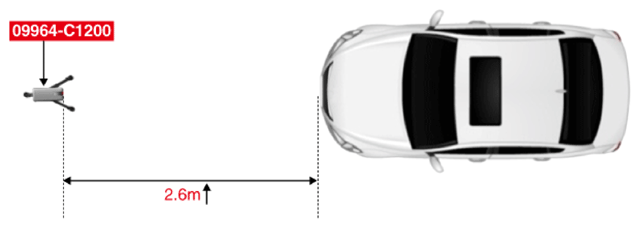

  5. Place the laser (09964-C1200) at 2.5m (8.2 ft) to the front of the vehicle.
    G16547328Courtesy of HYUNDAI MOTOR AMERICA

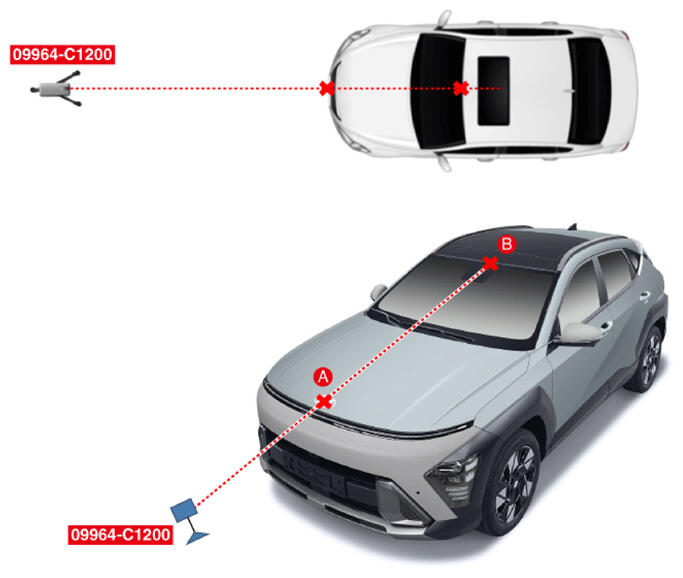

  6. Match the vertical line of laser to (A) and (B) using the laser (09964-C1200).
    G16547329Courtesy of HYUNDAI MOTOR AMERICA

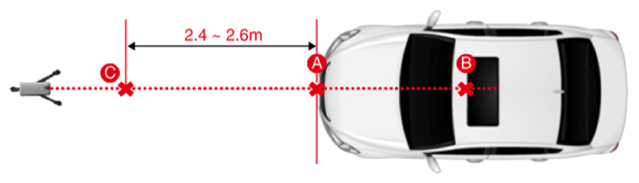

  7. Mark (C) at 2.5 m (8.2 ft) from (A) in front of the vehicle.
    G16547330Courtesy of HYUNDAI MOTOR AMERICA

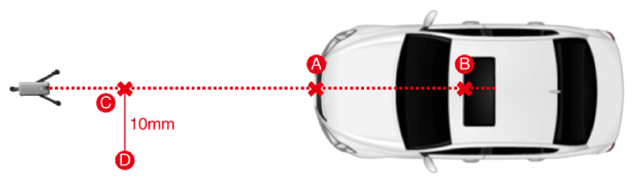

  8. Mark (D) at the place which is 10mm away from (C) to the driver direction.
    G16547331Courtesy of HYUNDAI MOTOR AMERICA

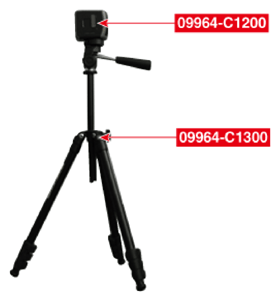

  9. Remove the laser (09964-C1200) from the tripod (09964-C1300).
    G16547332Courtesy of HYUNDAI MOTOR AMERICA

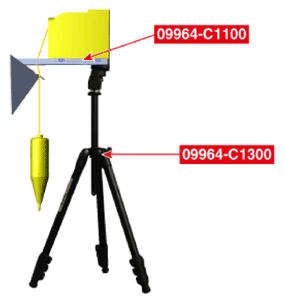

  10. Mount the reflector (09964-C1100) onto the tripod (09964-C1300).
    G16547333Courtesy of HYUNDAI MOTOR AMERICA

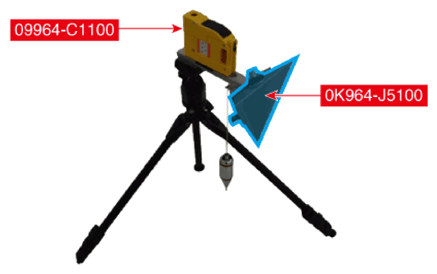

  11. Mount the reflector adapter (0K964-J5100) to the reflector (09964-C1100).
    G16547334Courtesy of HYUNDAI MOTOR AMERICA

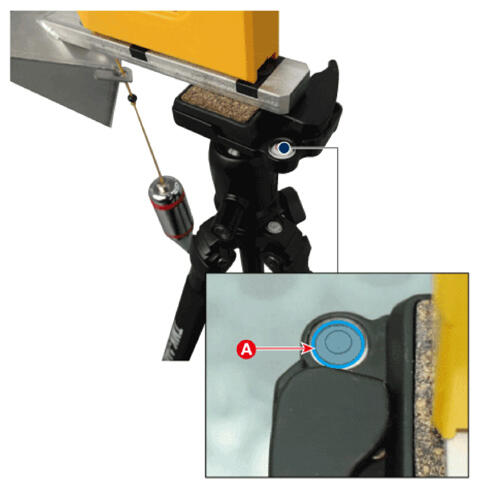

  12. Set the reflector horizontal using the leveler (A) which is built in the tripod (09964-C1300).
    G16547335Courtesy of HYUNDAI MOTOR AMERICA

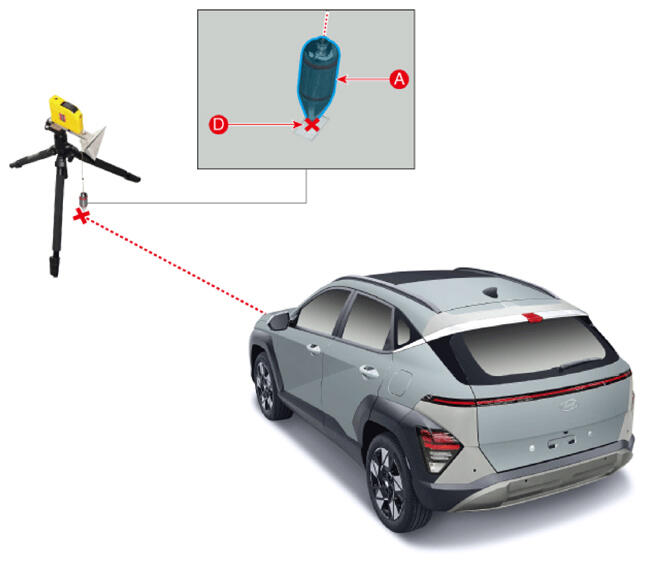

  13. Align the vertical weight (A) of the reflector (09964-C1100) with the point (D).
    G16547336Courtesy of HYUNDAI MOTOR AMERICA
  14. Set the height of the reflector adapter (0K964-J5100) to the illustration shown below.

    [General]

    G16547337Courtesy of HYUNDAI MOTOR AMERICA

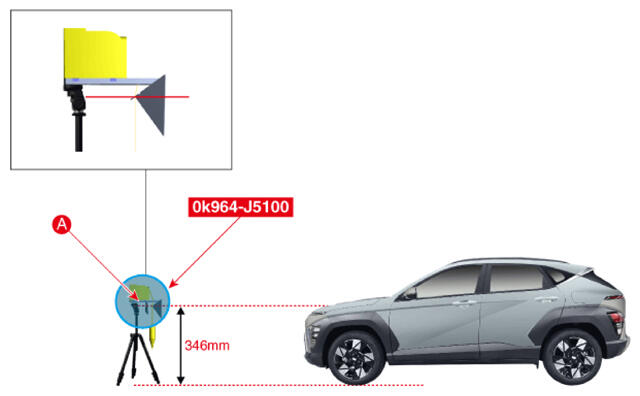

    [N Line]

    G16547338Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the vertical weight from the reflector (09964-C1100).
    NOTE:
    • It can be effected to adjustment if the vertical weight is still left.
  16. Check again the front radar and the surface of front bumper for the following items with the eyes.
    NOTE:
    • Make sure that there is no debris, or reflecting object on the surface of the radar.
    • Make sure that there is no debris, or reflecting object on the radiator grill.

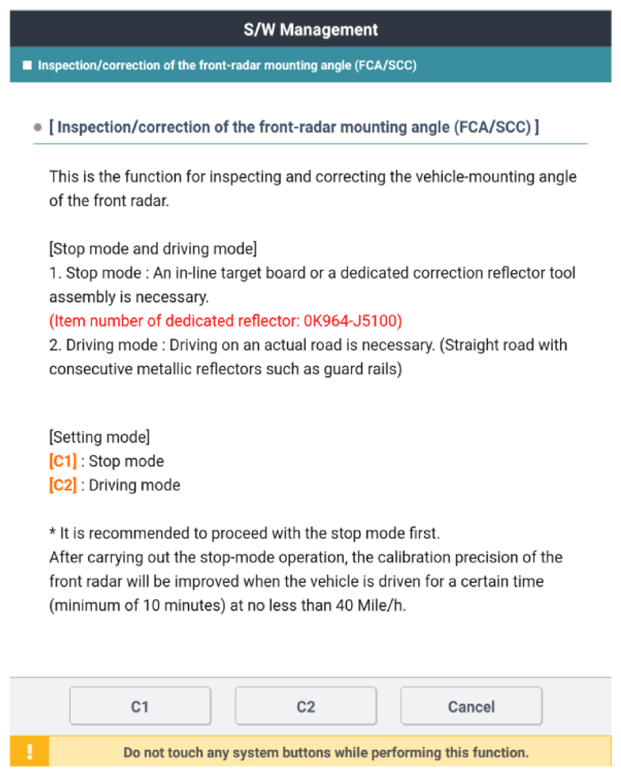

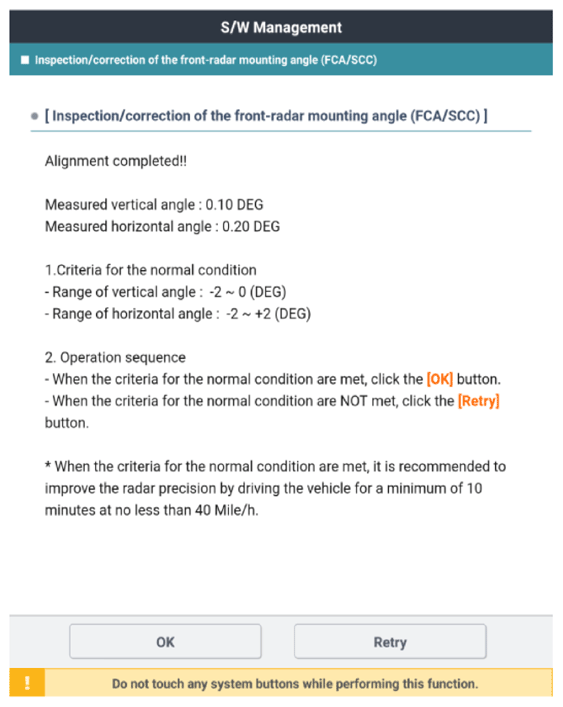

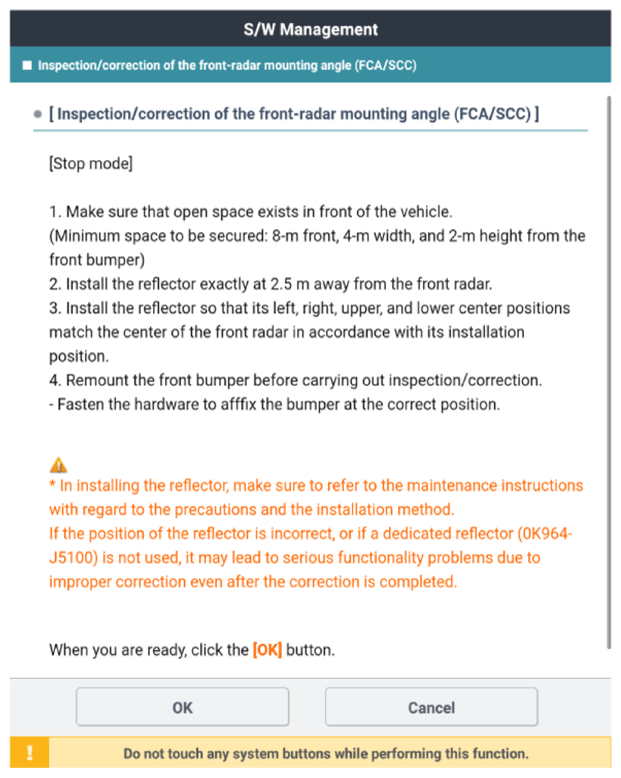

  17. Select C1 (stop mode) to inspect and adjust the front radar installation angle by following procedure on diagnostic tool screen.
    G16547339Courtesy of HYUNDAI MOTOR AMERICA
    G16547340Courtesy of HYUNDAI MOTOR AMERICA
    G16547341Courtesy of HYUNDAI MOTOR AMERICA
  18. In case of front radar inspection/correction failure, check the inspection/correction conditions.
