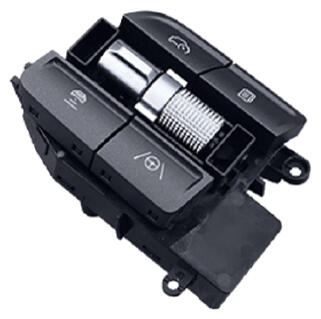

Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin No	Function
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+)
	2	ILL (+)
	3	Paddle shift (Up)
	4	Paddle shift (Down)
	5	Audio switch (+)_input
	6	-
	7	B-CAN (High)
	8	B-CAN (Low)
	9	Encoder_CH1
	10	Encoder_CH2
	11	Ground
	12	Ground
