Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
    WARNING:
    • Disconnect the battery negative cable from the battery and then wait for at least 3 minutes.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

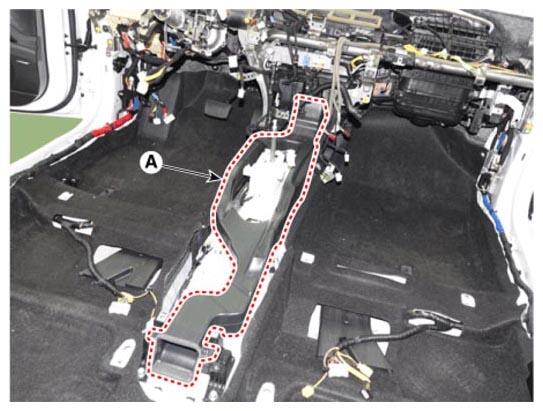

  3. Remove the center console duct (A).
    G16772940Courtesy of HYUNDAI MOTOR AMERICA

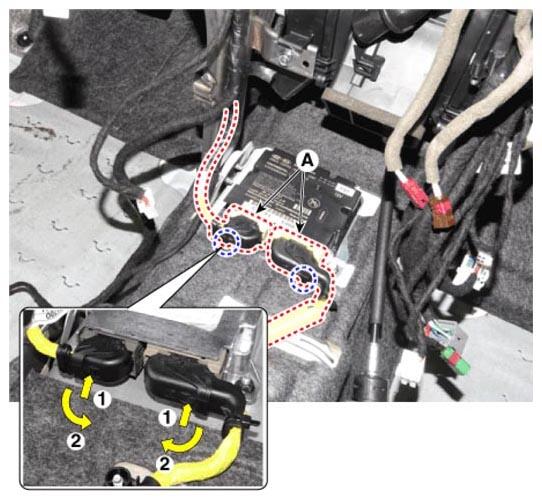

  4. Pull up the lock of the SRSCM connector to disconnect the connector (A).
    CAUTION:
    • Be careful SRSCM connector damage.
    G16772941Courtesy of HYUNDAI MOTOR AMERICA

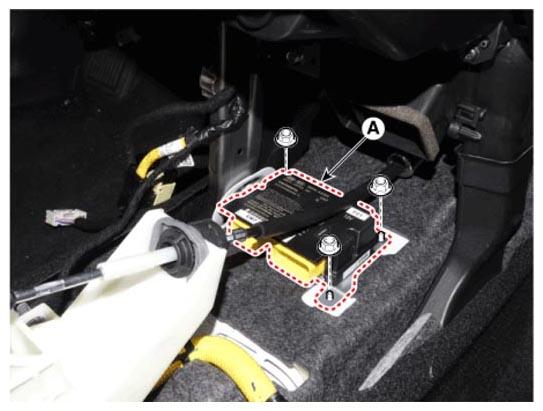

  5. Remove the SRSCM (A) after loosening the mounting nuts.
G16772942Courtesy of HYUNDAI MOTOR AMERICA
