Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Disconnect the front impact sensor connector (B) and then remove the front impact sensor (A) after loosening the mounting bolt.

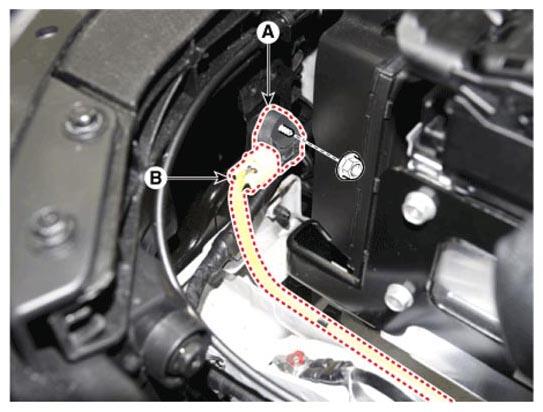

[LH]

G16772949Courtesy of HYUNDAI MOTOR AMERICA

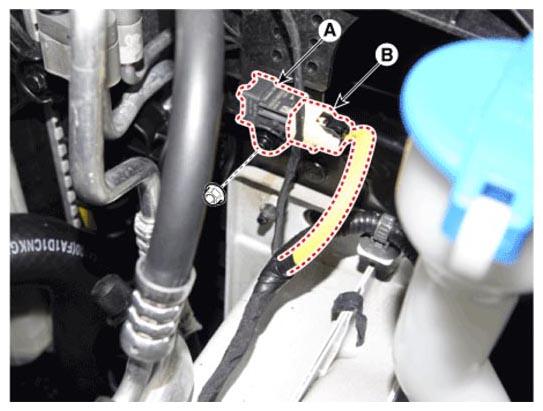

[RH]

G16772950Courtesy of HYUNDAI MOTOR AMERICA
