Home >> Hyundai >> 2024 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (5 Of 6) >> DTC P2195-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 1) >> Troubleshooting >> Diagnostic Flowchart

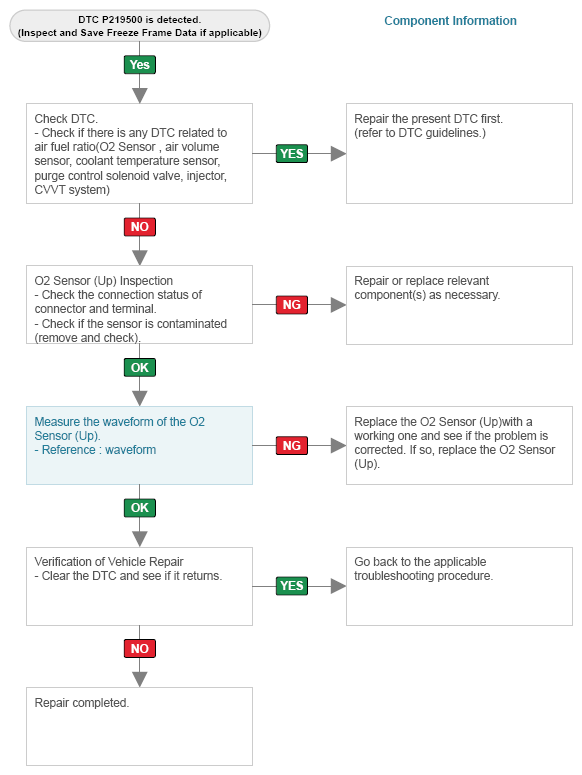

Diagnostic Flowchart

G16812587Courtesy of HYUNDAI MOTOR AMERICA
