Mike's Workshop Manuals: Service manuals for every vehicle
Home >> Hyundai >> 2024 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (4 Of 6) >> DTC P061C-00: Internal Control Module Engine RPM Performance >> Troubleshooting >> Diagnostic Flowchart

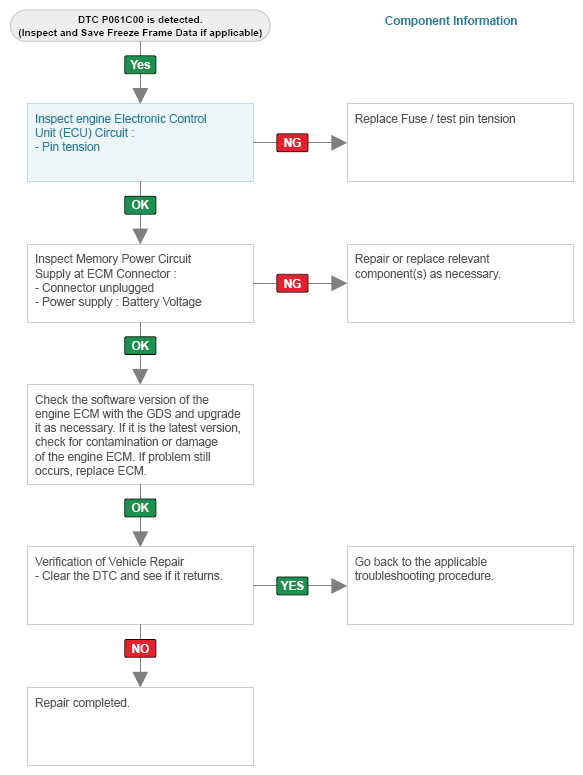

Diagnostic Flowchart

G16812539Courtesy of HYUNDAI MOTOR AMERICA
