Removal and Installation
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
- Disconnect the oil level sensor connector.

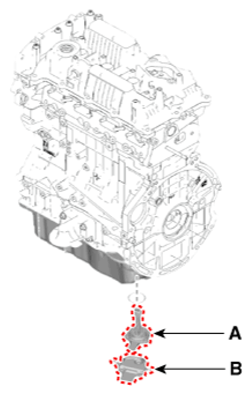

- Remove the sensor protector (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the oil level sensor (A).
Tightening torque:
8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)
NOTE:- Always use new gasket.
- Install in the reverse order of removal.
