Trunk Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the inside rear combination lamp (A).

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

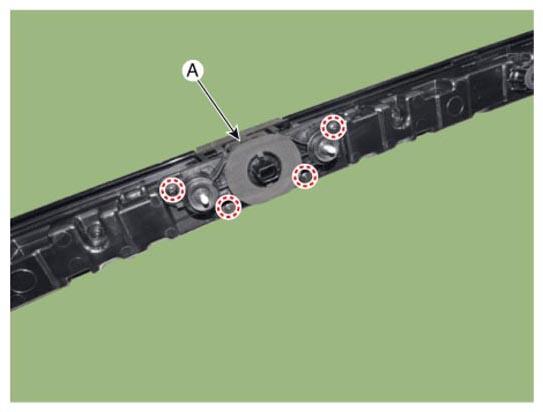

    G16780810Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the trunk rid open switch assembly (A).
