Home >> Hyundai >> 2023 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (2 Of 8) >> DTC P0197-00: Engine Oil Temperature Sensor Low Input >> Troubleshooting >> Diagnostic Flowchart

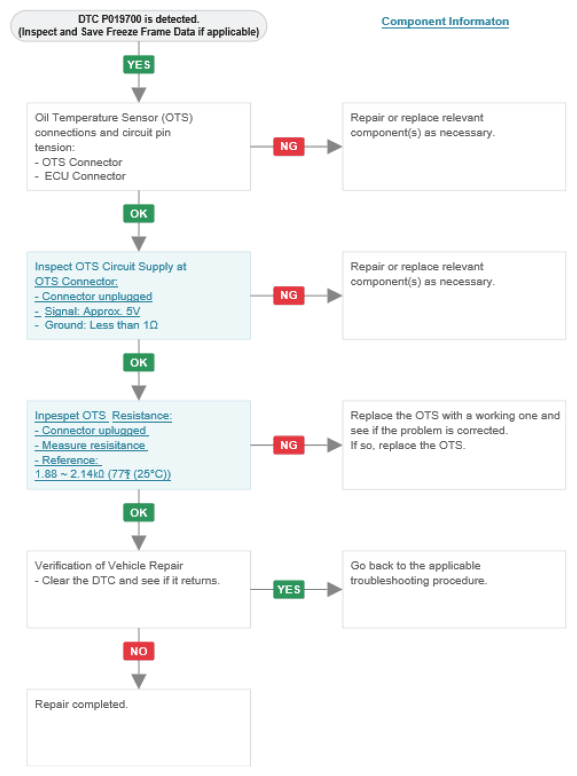

Diagnostic Flowchart

G16170429Courtesy of HYUNDAI MOTOR AMERICA
