Home >> Hyundai >> 2023 >> Tucson Plug-In Hybrid SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (PHEV) (2 Of 8) >> DTC P0113-00: Intake Air Temperature Sensor1 Circuit High Input >> Troubleshooting >> Diagnostic Flowchart

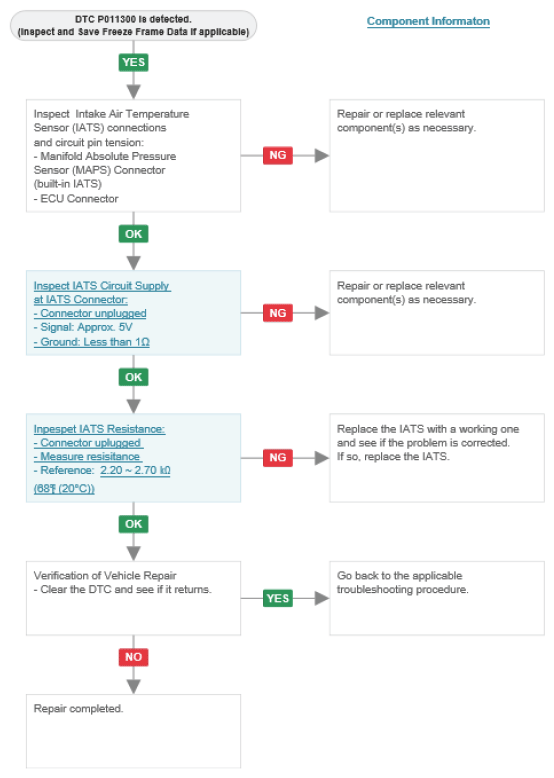

Diagnostic Flowchart

G16170394Courtesy of HYUNDAI MOTOR AMERICA
