SBW Control Unit Diagnosis (PHEV)
>>
DTC U0121-83: Lost Communication With Anti-Lock Brake System (ABS) Control Module
>>
Troubleshooting
>>

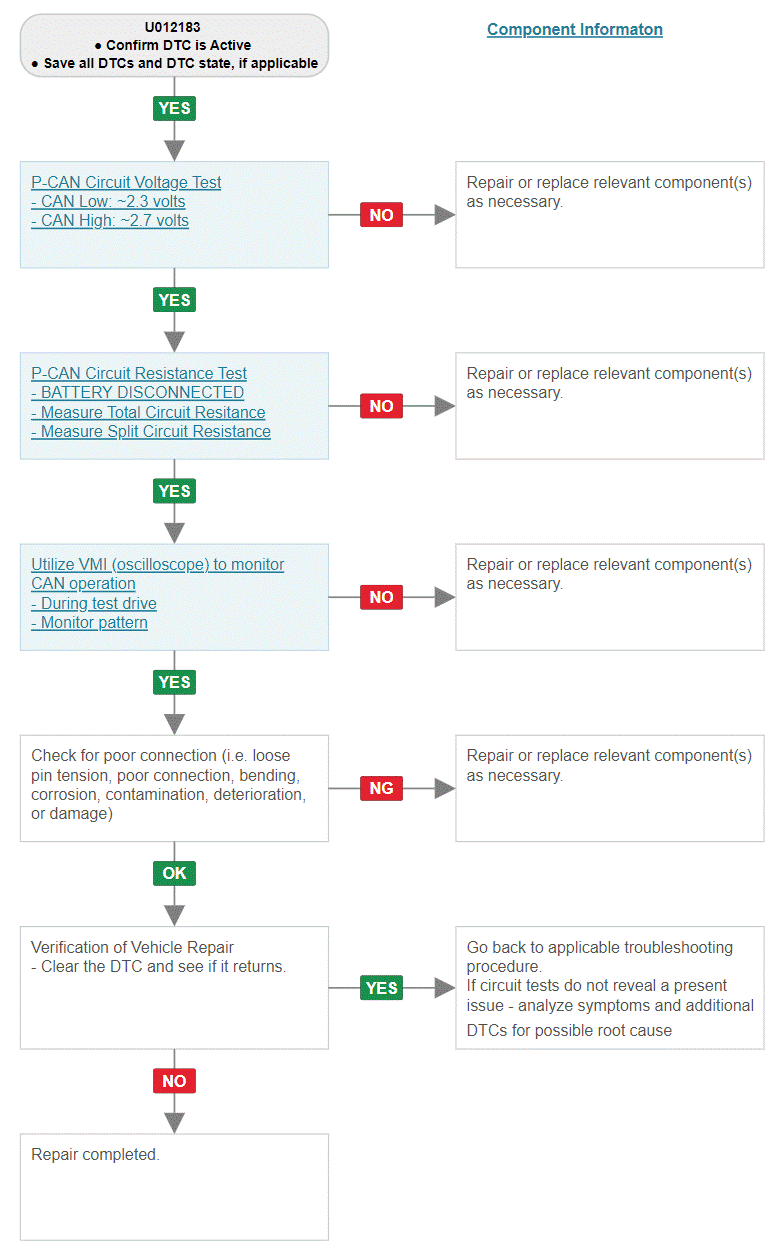

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
