Home >> Hyundai >> 2023 >> Tucson Plug-In Hybrid Limited >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> SBW Control Unit Diagnosis (PHEV) >> DTC P28E8-12: SBW Actuator Encoder Error >> DTC Information And Inspection >> Monitor GDS Data

Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Engine "ON" & select SCU system.
  3. Select "Current Data" mode.
  4. Change a shift lever from P-range to D-range.

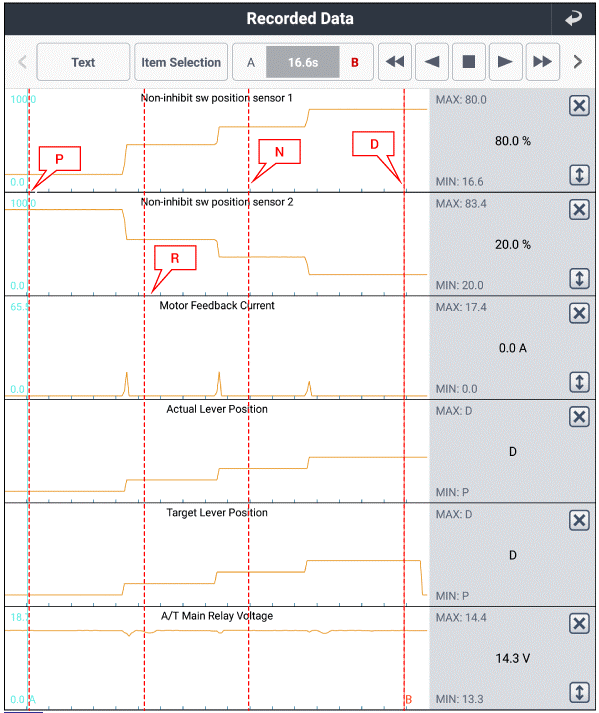

G16172864Courtesy of HYUNDAI MOTOR AMERICA
