Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim. (Refer to Body - "REAR DOOR TRIM ")

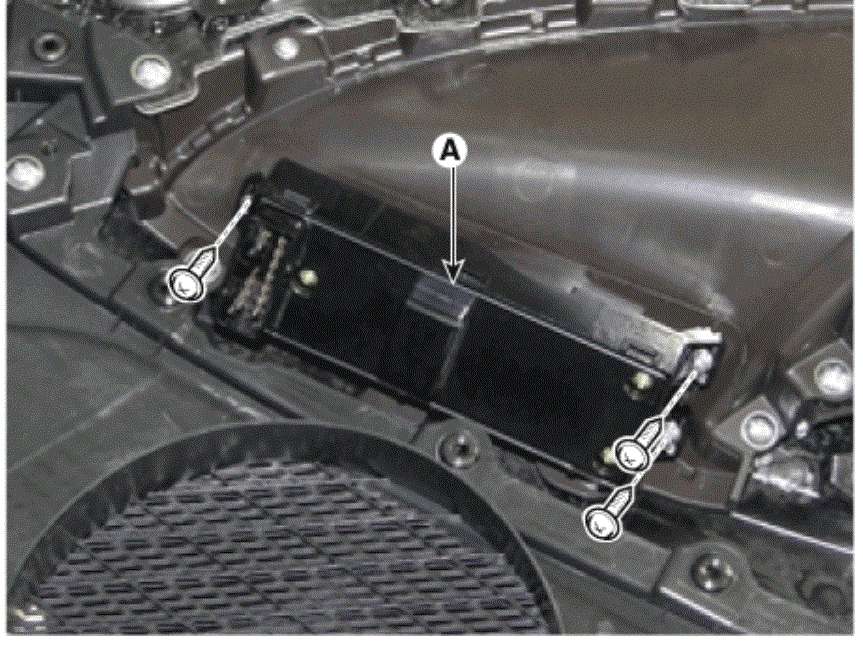

  3. Remove the power window switch assembly (A) after loosening the mounting screws.
    G16149121Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

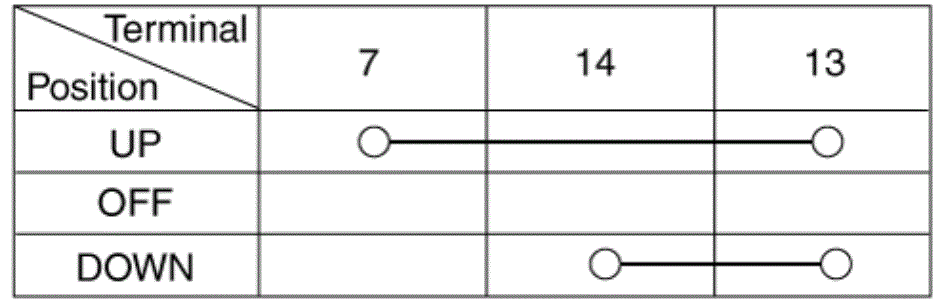

    Manual Window

    G16149122Courtesy of HYUNDAI MOTOR AMERICA

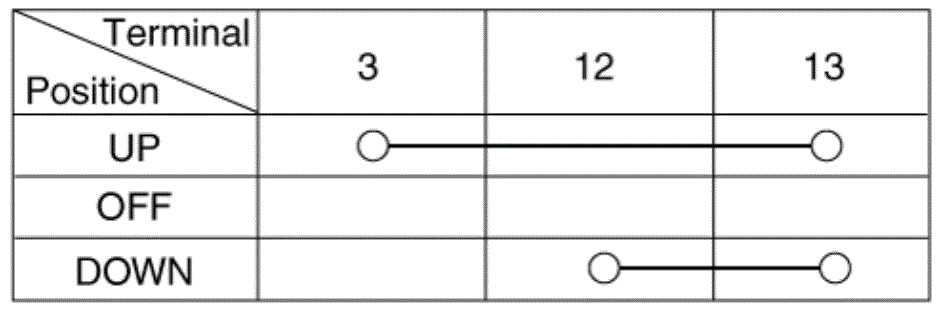

    Safety Window

    G16149123Courtesy of HYUNDAI MOTOR AMERICA
