Front Radar: Installation

Information

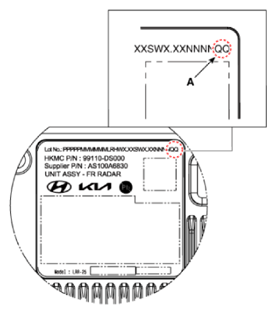

• Before installing the front radar, check the last 2 digits of the Lot, No (A). The label is on the back of the front radar.
• The meaning of Lot. No (A) is the vertical deviation angle of front radar inner side.

Courtesy of HYUNDAI MOTOR AMERICA

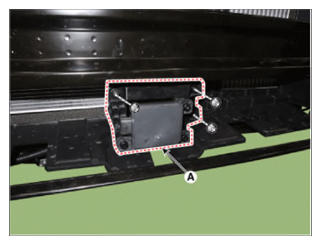

1. Install the front radar (A).

   Tightening torque:

   8.8-10.8 N.m (0.9-1.1 kgf.m, 6.5-8.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

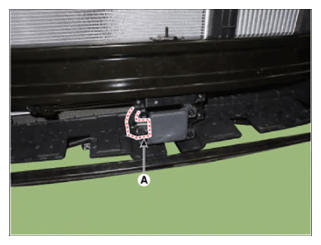

2. Connect the front radar connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Check and align the front radar mounting angle.

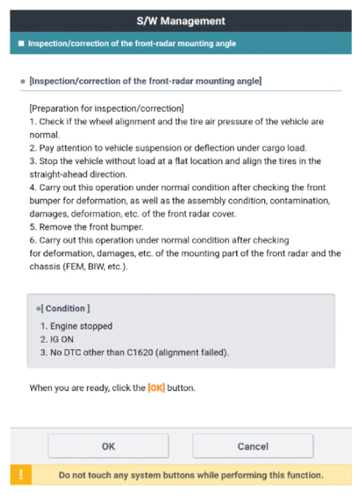

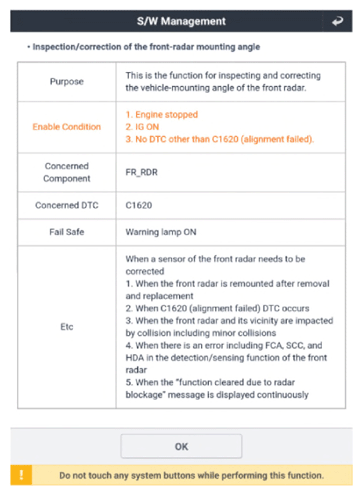

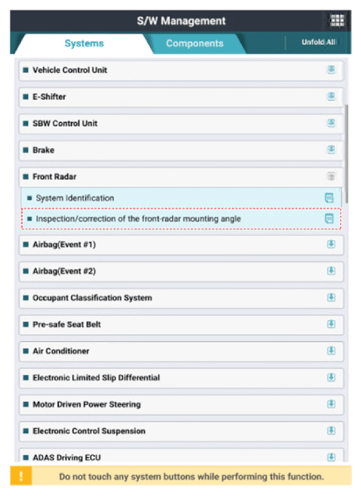

   1. Perform the "inspection/correction of the front-radar mounting angle" using the diagnostic tool.

      Courtesy of HYUNDAI MOTOR AMERICA

      Courtesy of HYUNDAI MOTOR AMERICA

      Courtesy of HYUNDAI MOTOR AMERICA

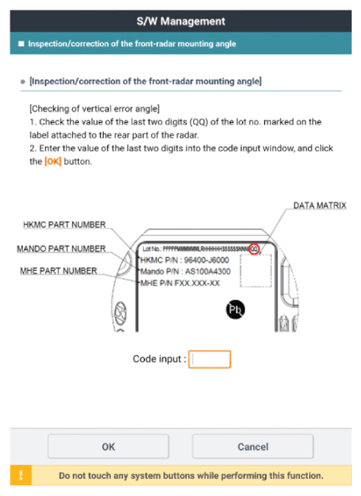

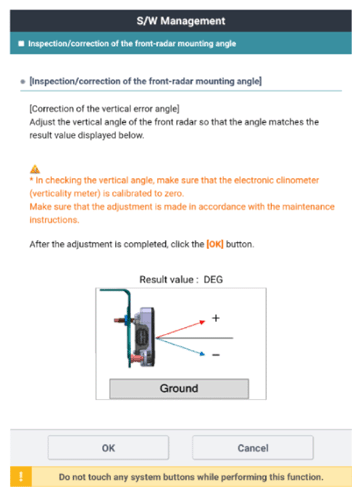

   2. Input 2 digits of value in the code input box, then press "OK"

      Courtesy of HYUNDAI MOTOR AMERICA

   3. Check the vertical angle which is compensated error on diagnostic tool.

      Information

      • The result value is final goal vertical angle which is compensated inner error of criteria vertical installation angle 0°.

      Courtesy of HYUNDAI MOTOR AMERICA

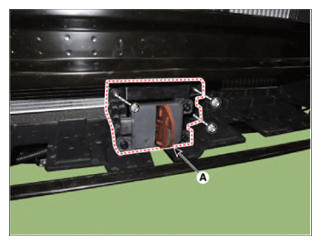

   4. Check the front radar vertical angle by using the vertical protractor (A).

      Courtesy of HYUNDAI MOTOR AMERICA

      NOTE:

      • Make sure to perform zero setting before using vertical protractor. (perform this procedure periodically)
      • Be careful with +/- readings when finding true vertical using vertical protractor.

      Courtesy of HYUNDAI MOTOR AMERICA

      Courtesy of HYUNDAI MOTOR AMERICA

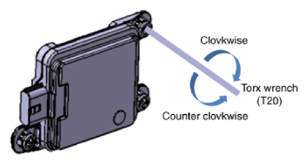

      Number of adjustment screw rotation	Correction angle
      	Clockwise	Counter clockwise
      0.5	+ 0.5°	- 0.5°
      1	+ 1.0°	- 1.0°
      1.5	+ 1.5°	- 1.5°
      2	+ 2.0°	- 2.0°
      2.5	+ 2.5°	- 2.5°
      3	+ 3.0°	- 3.0°
      3.5	+ 3.5°	- 3.5°
      4	+ 4.0°	- 4.0°
      4.5	+ 4.5°	- 4.5°
      5	+ 5.0°	- 5.0°

      NOTE:

      • Make sure that there is no foreign or reflective objects on the surface of the radar.
      • Make sure that there is no foreign or reflective objects on the radiator grille.
4. Install the front bumper assembly.

   (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

5. Perform the front radar inspection/correction procedure by using the SST.

   (Refer to Front Radar - "ADJUSTMENT ")
