How to Check/Adjust Front Radar Installation Angle - Stop Mode

Information

Preparation before the front radar alignment:

Put the vehicle on the level ground.
Take out heavy luggage from the vehicles' seats or trunk.
Set all tires according to the specified pressure.
Check wheel alignment.
Check that the front surface of the front radar is clean.

NOTE:

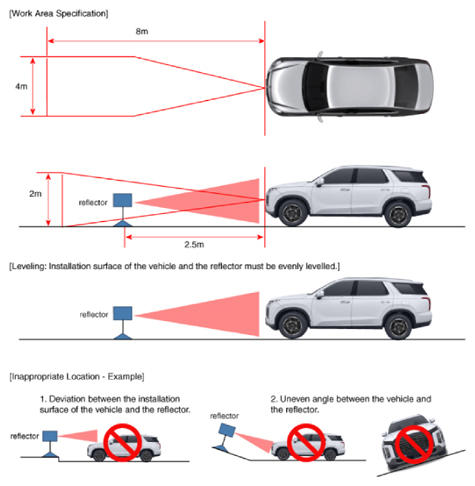

Perform in an area with minimum clearance of 8m (26.2 ft) front, 4m (13.1 ft) sides, and 2 m (6.6 ft) above the vehicle.
Install the reflector exactly 2.5 m (8.2 ft) away from the Front Radar.
The reflector has to be installed at same place (height and angle) as front radar center.
(If height and angle are different, then adjustment can not be done correctly.)
Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
Make sure to use exclusive reflector (OK964-J5100)
Be sure that the vehicle is not moved and free from vibration when performing front radar alignment (getting in/out or opening/closing doors).
IG has to be on when performing front radar alignment. (engine stop condition)

Stop the vehicle horizontally at a flat place.

Courtesy of HYUNDAI MOTOR AMERICA

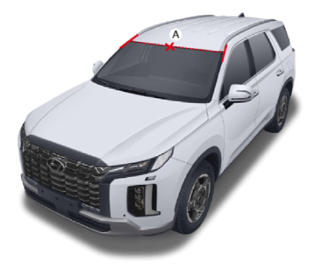

Mark the center point (A) after measuring the distance on top of wind glass.

Courtesy of HYUNDAI MOTOR AMERICA

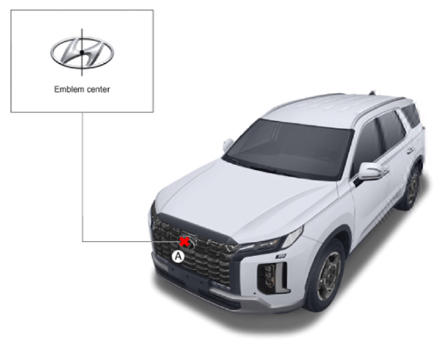

Mark the center point of emblem (B).

Courtesy of HYUNDAI MOTOR AMERICA
Install the laser (09964-C1200) to the tripod (09964-C1300).

Courtesy of HYUNDAI MOTOR AMERICA

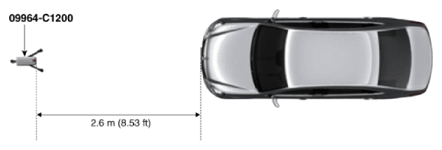

Place the laser (09964-C1200) at 2.6 m (8.53 ft) to the front of the vehicle.

Courtesy of HYUNDAI MOTOR AMERICA

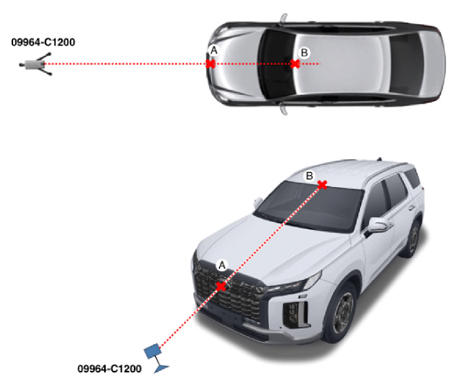

Match the vertical line of laser to (A) and (B) using the laser (09964-C1200).

Courtesy of HYUNDAI MOTOR AMERICA

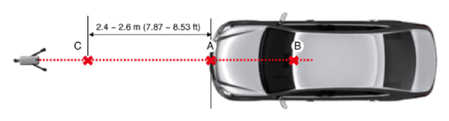

Mark (C) at 2.4 ~ 2.6 m (7.87 ~ 8.53 ft) from (A) in front of the vehicle.

Courtesy of HYUNDAI MOTOR AMERICA

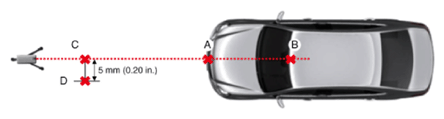

Mark (D) at the place which is 5 mm (0.20 in.) away from (C) to the passenger direction.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the laser (09964-C1200) from the tripod (09964-C1300).

Courtesy of HYUNDAI MOTOR AMERICA
Mount the reflector (09964-C1100) on to the tripod (09964-C1300).

Courtesy of HYUNDAI MOTOR AMERICA

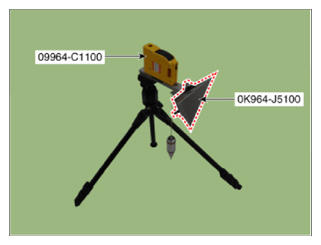

Mount the reflector adapter (0K964-J5100) to the reflector (09964-C1100).

Courtesy of HYUNDAI MOTOR AMERICA

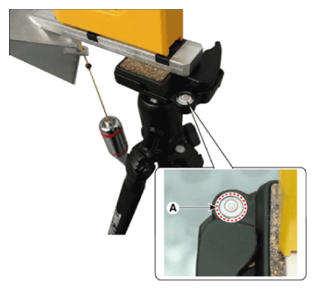

Set the reflector horizontal using the leveler (A) which is built in the tripod (09964-C1300).

Courtesy of HYUNDAI MOTOR AMERICA

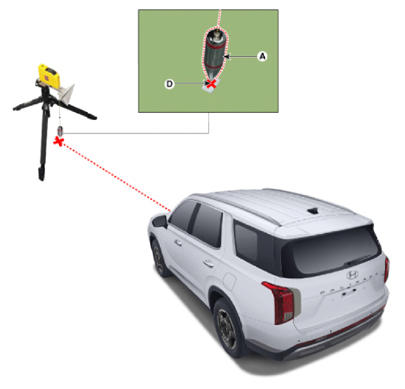

Align the vertical weight (A) of the reflector (09964-C1100) with the point (D).

Courtesy of HYUNDAI MOTOR AMERICA

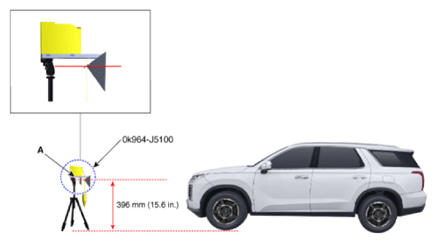

Install the extended reflector adapter (0K964-J5100) with the height of the center coincident with the center of the front radar sensor.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the vertical weight from the reflector (09964-C1100).
NOTE:
- It can be effected to adjustment if the vertical weight is still left.
Check again the front radar and the surface of front bumper for the following items with the eyes.
NOTE:
- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grill.

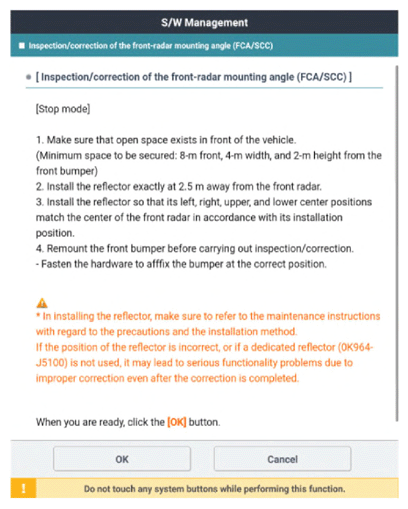

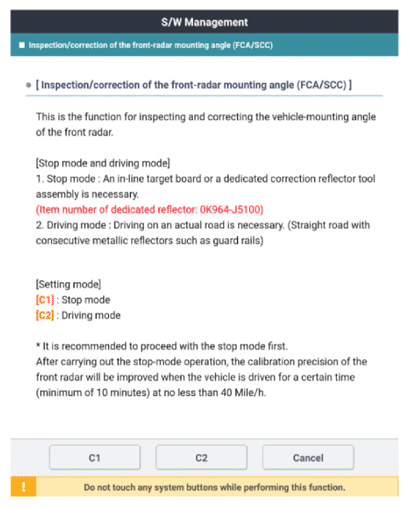

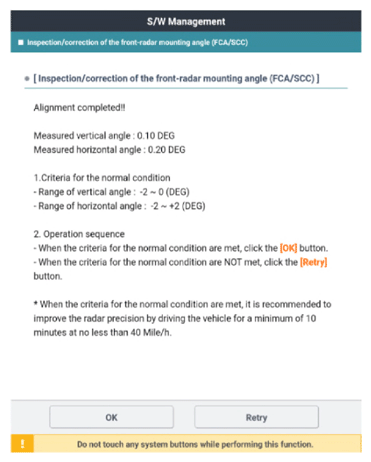

Select C1 (stop mode) to inspect and adjust the front radar installation angle by following procedure on diagnostic tool screen.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
In case of front radar inspection/correction failure, check the inspection/correction conditions.
